Glass Manipulators for Safer Glass Handling and Installation

Leepa glass manipulators are designed for lifting, moving, rotating, tilting, and installing large glass panels. With vacuum suction, electric lifting, telescopic arms, side-shift control, and optional remote operation, they help glazing contractors, curtain wall installers, and glass factories improve handling safety and efficiency.
View All Models
Get a Custom Quote
spider crane
spider crane
spider crane
spider crane
spider crane
spider crane
spider crane
spider crane
spider crane
Load Capacity
300–800kg
Max Height
Up to 5m
Vacuum Safety
Dual System
Operation
Electric / Manual
Product Features

Practical Glass Handling Equipment for B2B Project Buyers

Leepa focuses on practical configuration, stable vacuum performance, easy operation, and project-oriented support for overseas glazing contractors, distributors, and rental companies.

Dual Vacuum System

One vacuum system works during operation while the other acts as a standby system, helping improve safety when handling large and valuable glass panels.

Electric Lifting and Telescopic Arm

Electric lifting, telescopic extension, tilting, and side-shift functions help position glass panels more accurately during installation.

Rotation and Side-Turning

Manual 360° rotation and side-turning are standard on selected models, with electric rotation and electric side-turning available as optional configurations.

Compact Access Options

Mini and trolley models help pass through narrow doors, corridors, workshops, and indoor installation areas where larger machines are difficult to use.

Custom Configuration Support

Load capacity, suction cup quantity, vacuum pad layout, control method, remote control, power system, and lifting height can be configured according to project needs.

Safety Monitoring

Pressure sensors and clear control systems help operators monitor vacuum status and improve safe operation during glass handling work.

Model List

Choose the Right Glass Manipulator for Your Worksite

Different glazing jobs require different lifting capacity, access width, rotation method, vacuum pad layout, and control system. Leepa can help compare suitable models according to your glass size, installation height, jobsite condition, and export market requirements.

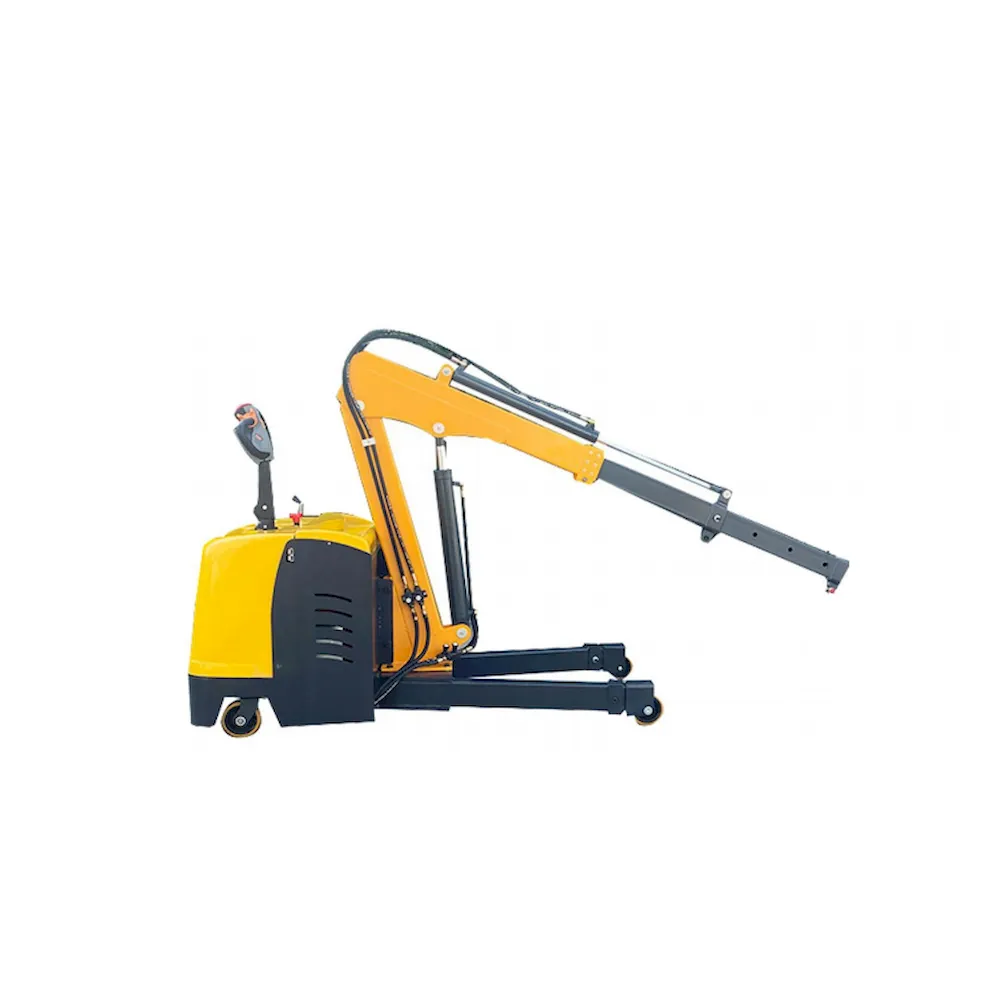

Electric Floor Crane
Electric Floor Crane
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

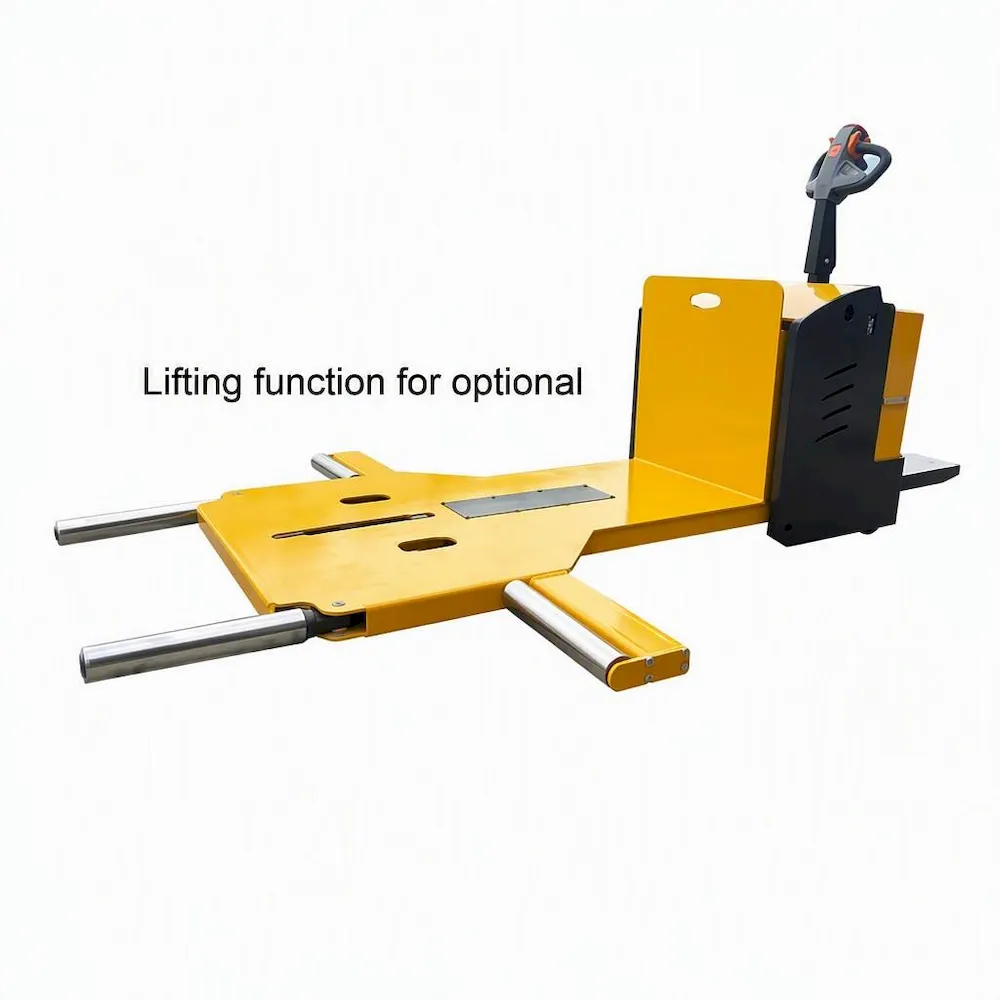

Electric Car Mover
Electric Car Mover
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

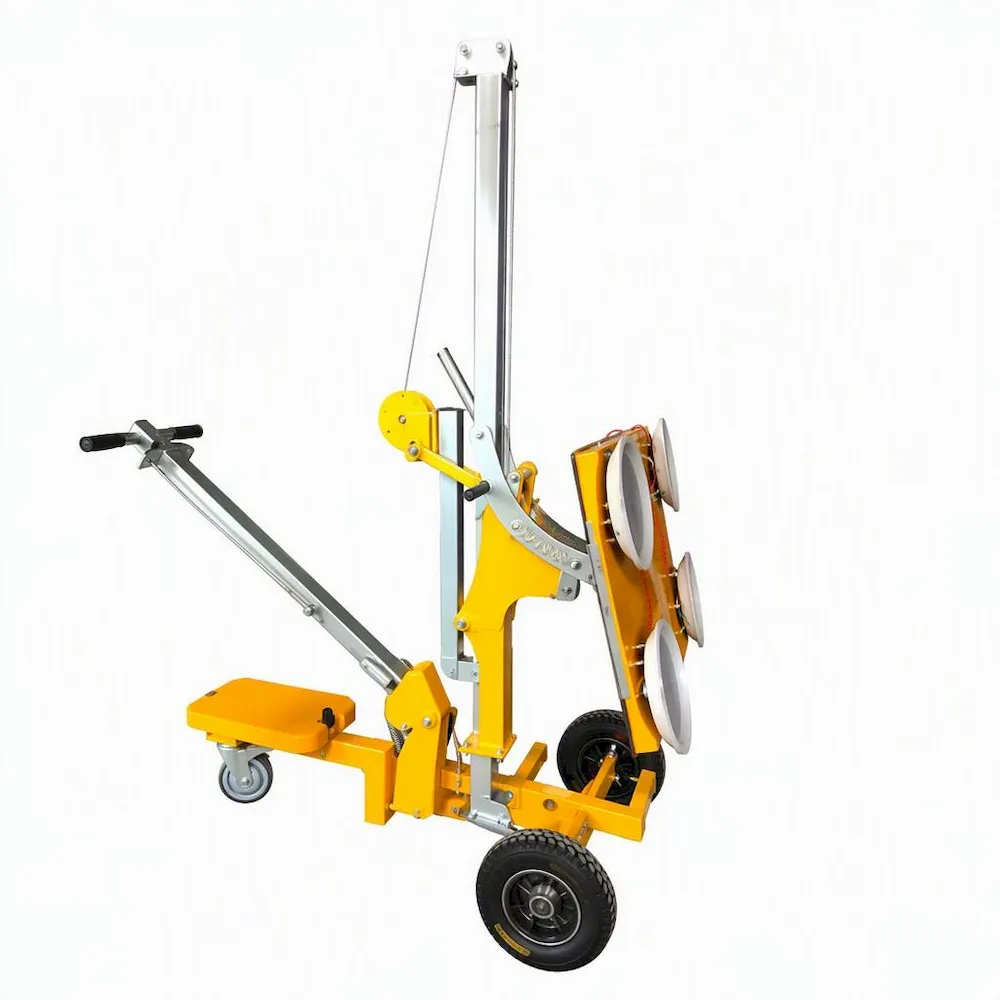

Multifunctional Glass Trolley
Multifunctional Glass Trolley
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

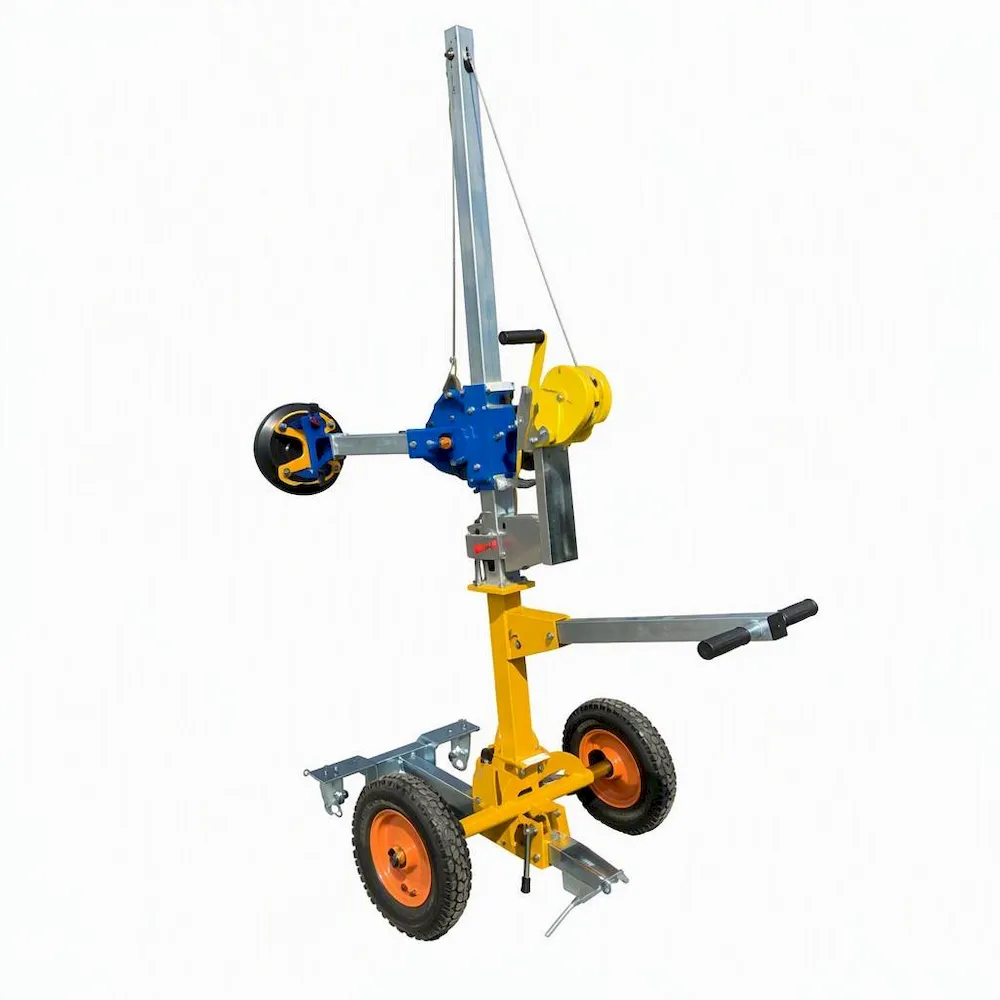

Glass Trolley
Glass Trolley
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

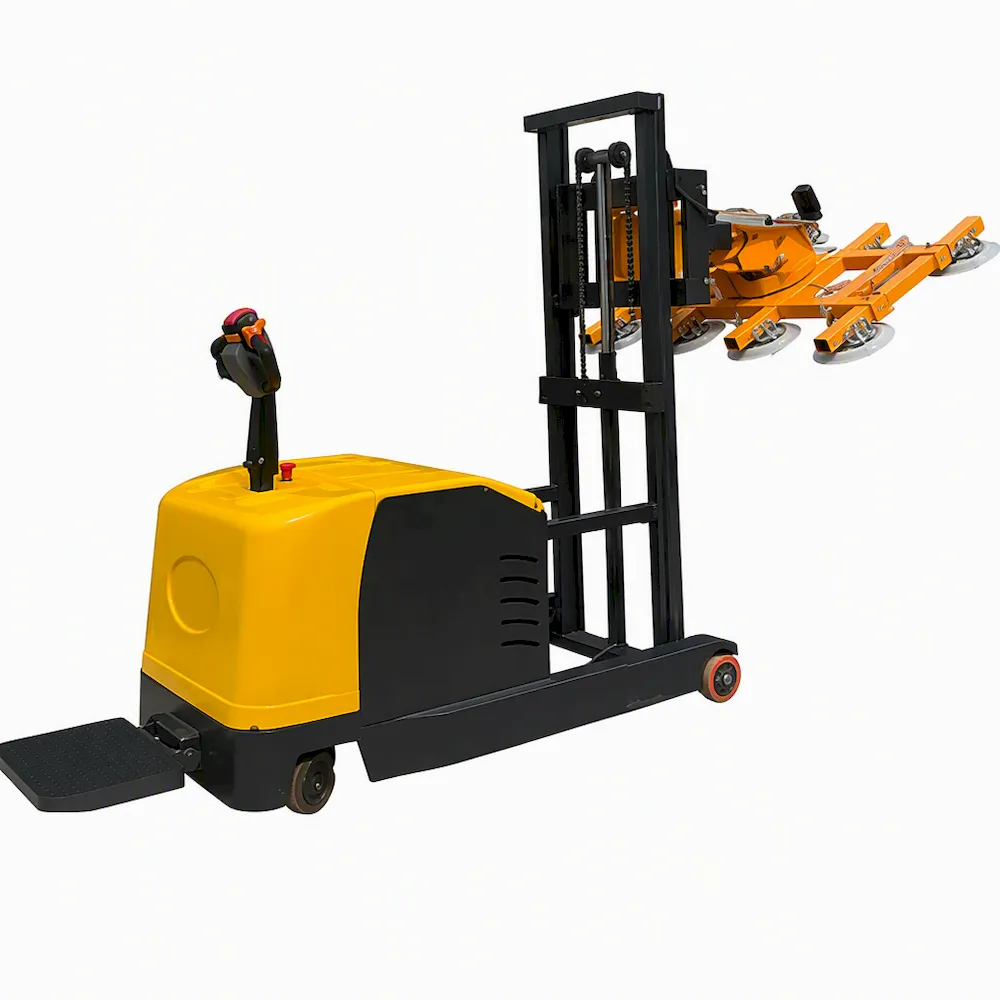

Outrigger-Free Glass Manipulator
Outrigger-Free Glass Manipulator
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

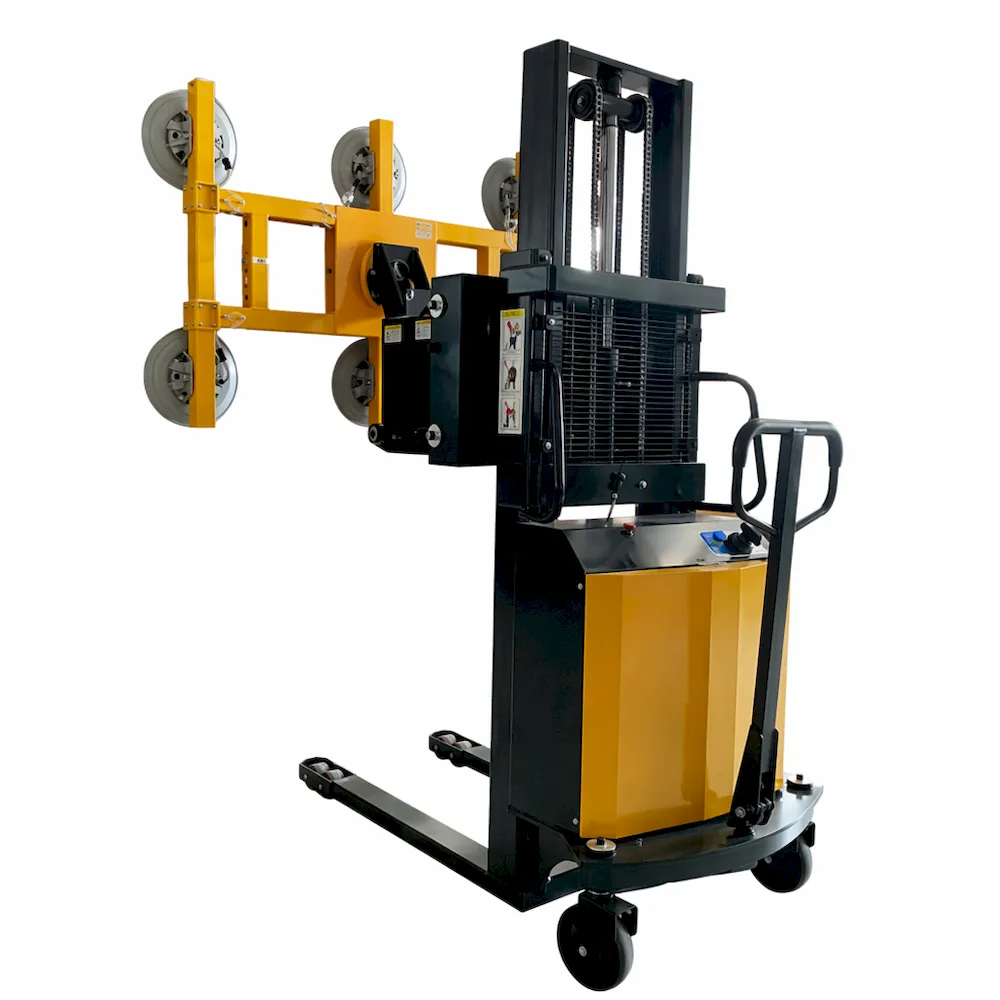

Semi-Electric Glass Suction Lifter
Semi Electric Glass Lifter
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

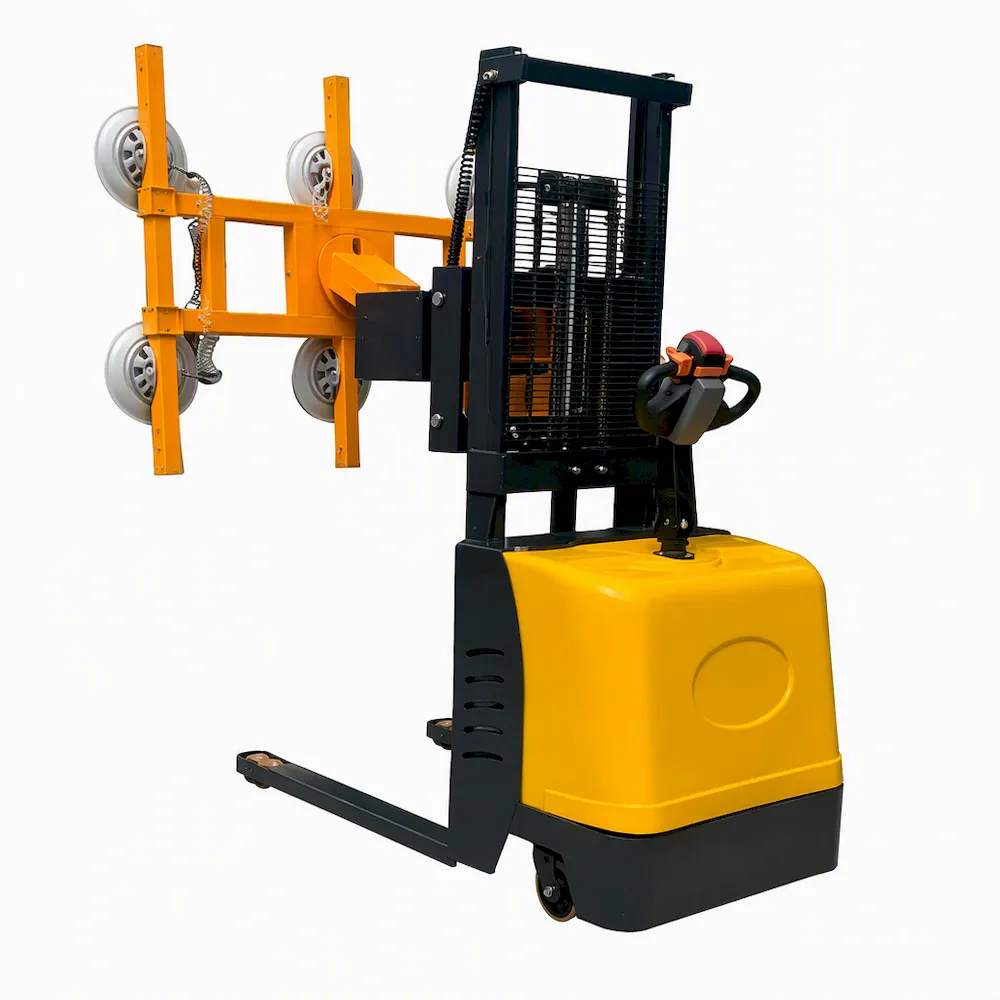

Vacuum Lifter Trolley
Vacuum Lifter Trolley
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

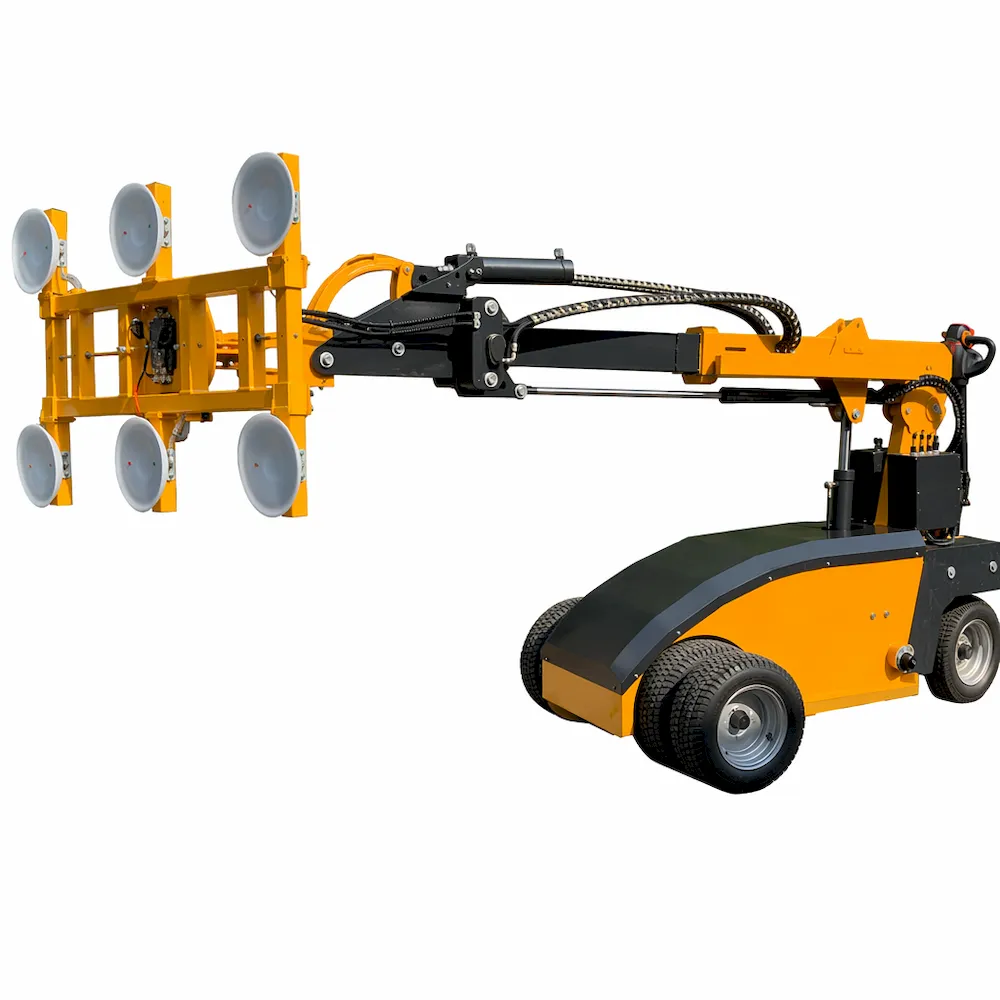

Glass Manipulator
Glass Manipulator
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

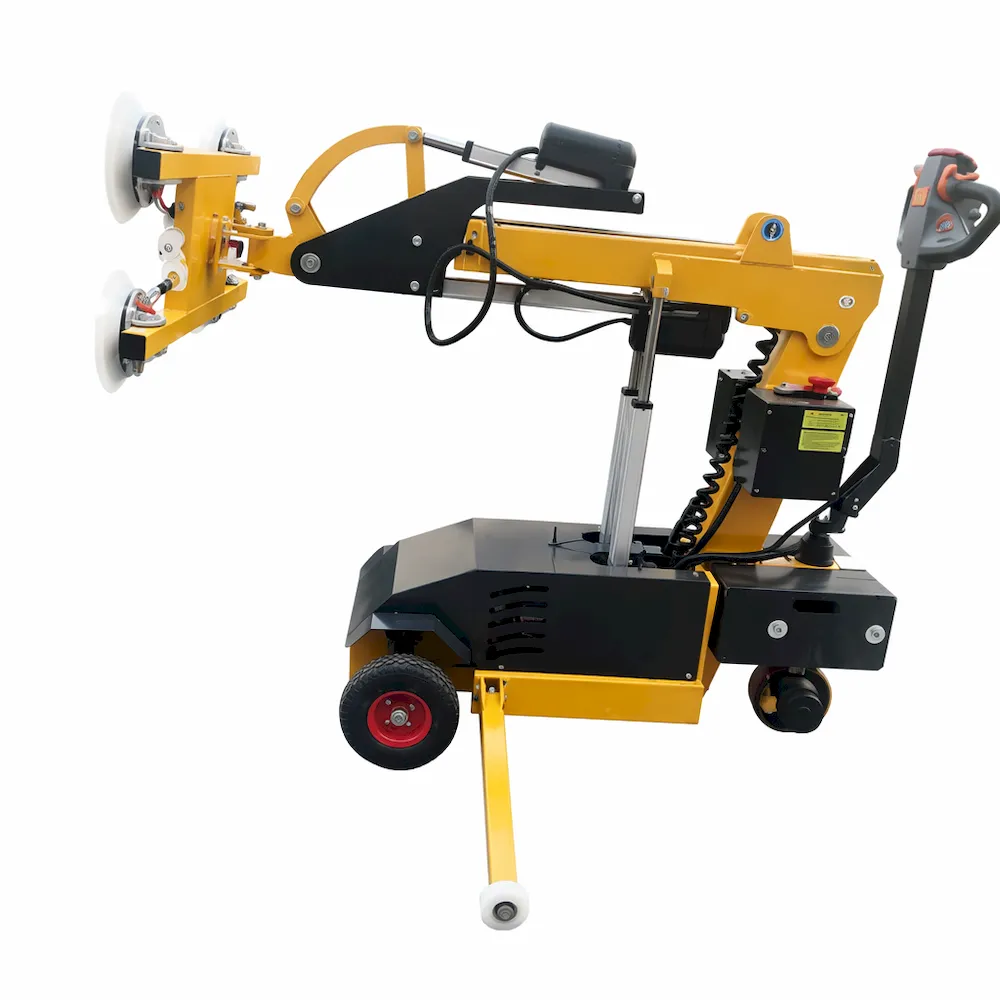

Glass Manipulator
Glass Manipulator
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

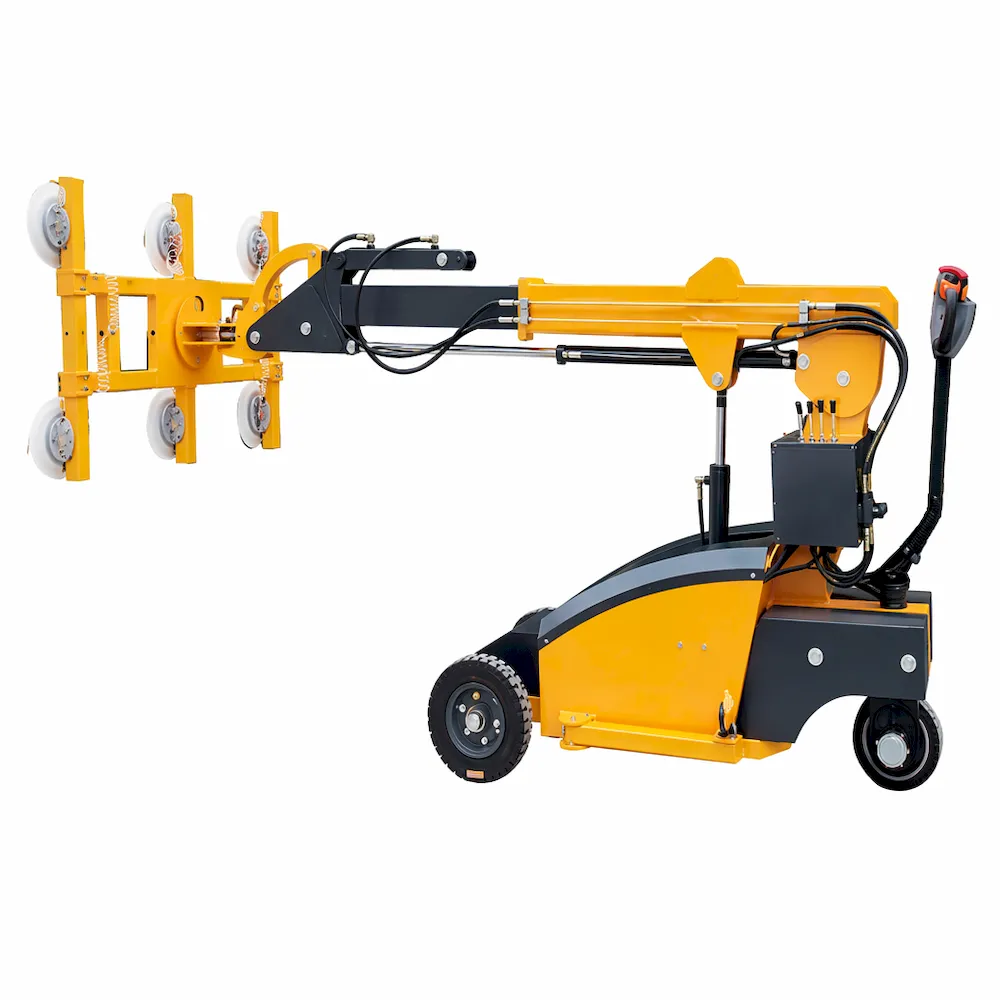

Glazing Manipulator
Glazing Manipulator
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)

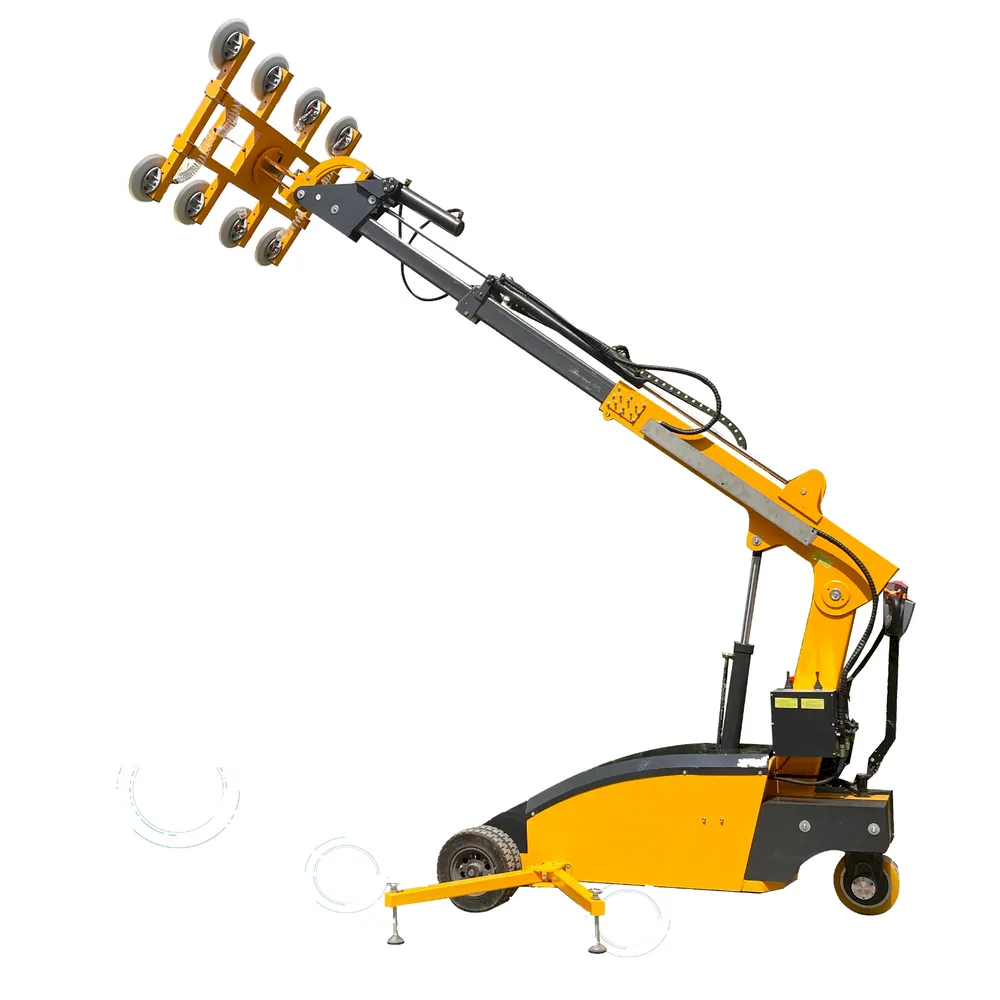

800KG Glass Manipulator
800KG Glass Manipulator
Max Platform Height (m)
Max Working Height (m)
Rated Load (kg)
Technical Parameters

GL-LD Series Glass Manipulator Specifications

Compare load capacity, lifting height, suction cup quantity, battery configuration, motor power, base size, wheel size, and main operation functions to choose the right glass manipulator for your project.

Model GL-LD-300 GL-LD-400 GL-LD-500 GL-LD-600 GL-LD-800
Load Capacity 300kg
Closed Position		 400kg
Closed Position		 500kg
Closed Position		 600kg
Closed Position		 800kg
Closed Position
150kg
Vertical Position		 200kg
Extended Position		 250kg
Extended Position		 300kg
Extended Position		 400 / 260kg
Extended Position
Lifting Height 3500mm 3500mm 3700mm 3700mm 5000mm
Suction Cup Quantity 4 pcs 4 pcs 6 pcs 6 pcs 8 pcs
Suction Cup Size Ø300mm Ø300mm Ø300mm Ø300mm Ø300mm
Battery Group 2×12V / 80AH 2×12V / 100AH 2×12V / 120AH 2×12V / 120AH 2×12V / 120AH
Charger Smart Charger Smart Charger Smart Charger Smart Charger Smart Charger
Drive Motor 24V / 1200W 24V / 600W 24V / 900W 24V / 900W 24V / 1200W
Lifting Motor 24V / 2000W / 5L 24V / 2000W / 5L 24V / 2000W / 5L 24V / 2000W / 5L 24V / 2000W / 12L
Base Size L×W 2660×810mm 2660×810mm 2800×810mm 2800×810mm 2800×810mm
Drive Wheel Ø250×80mm Ø250×80mm Ø300×100mm Ø300×100mm Ø300×125mm
N.W. / G.W. 1100 / 1150kg - 1300 / 1350kg 1400 / 1450kg 1600 / 1650kg
Package Size 2.56M × 1.03M × 1.7M 2.58M × 1.05M × 1.7M 3M × 1.25M × 2.3M
Actions Electric
4 Functions		 1. Suction frame up/down electric lifting, 180° 2. Front boom telescopic extension: 610 / 710mm 3. Electric hydraulic boom lifting 4. Front wheel steering enables the machine body to move left and right within a 100mm range
Manual
2 Functions		 5. Suction frame left/right manual tilting, 90° 6. Suction frame manual rotation, 360° Optional: electric rotation or remote control configuration available on request.
Note: Specifications can be adjusted according to glass size, load capacity, suction cup layout, control method, battery configuration, lifting height, and project working conditions.
Product Overview

Designed to Reduce Labor and Improve Glass Installation Safety

Handling large glass panels by hand requires multiple workers and can create safety risks during lifting, positioning, rotation, and installation. Leepa glass manipulators provide a practical mechanical solution for glass factories, curtain wall contractors, door and window installers, and construction teams.
The series includes heavy-duty glass manipulators, front-drive models, mini narrow-frame models, electric glass stackers, semi-electric glass lifts, and glass trolleys. Buyers can choose a model according to glass size, load capacity, site access width, lifting height, power preference, and installation method.
  • Vacuum suction system for secure glass lifting and positioning.
  • Electric walking, lifting, telescopic extension, tilting, and side-shift functions available.
  • Manual or optional electric rotation and side-turning for flexible glass installation angles.
  • Suitable for curtain walls, glass doors, windows, glass sheets, and indoor/outdoor glazing projects.
Applications

Suitable for Glass Installation, Transport, and Workshop Handling

Glass manipulators are widely used in curtain wall installation, door and window projects, glass factories, construction sites, and indoor glass handling work.

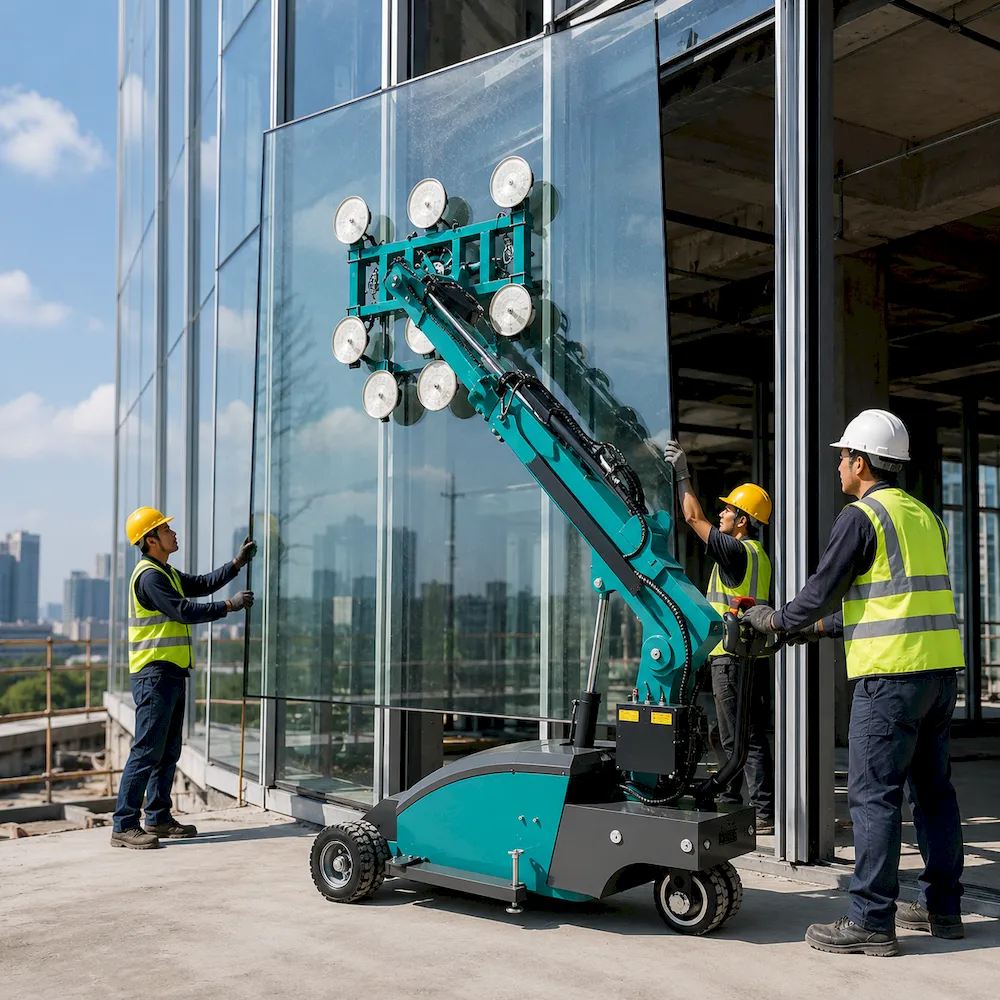

Curtain Wall Installation

Curtain Wall Installation

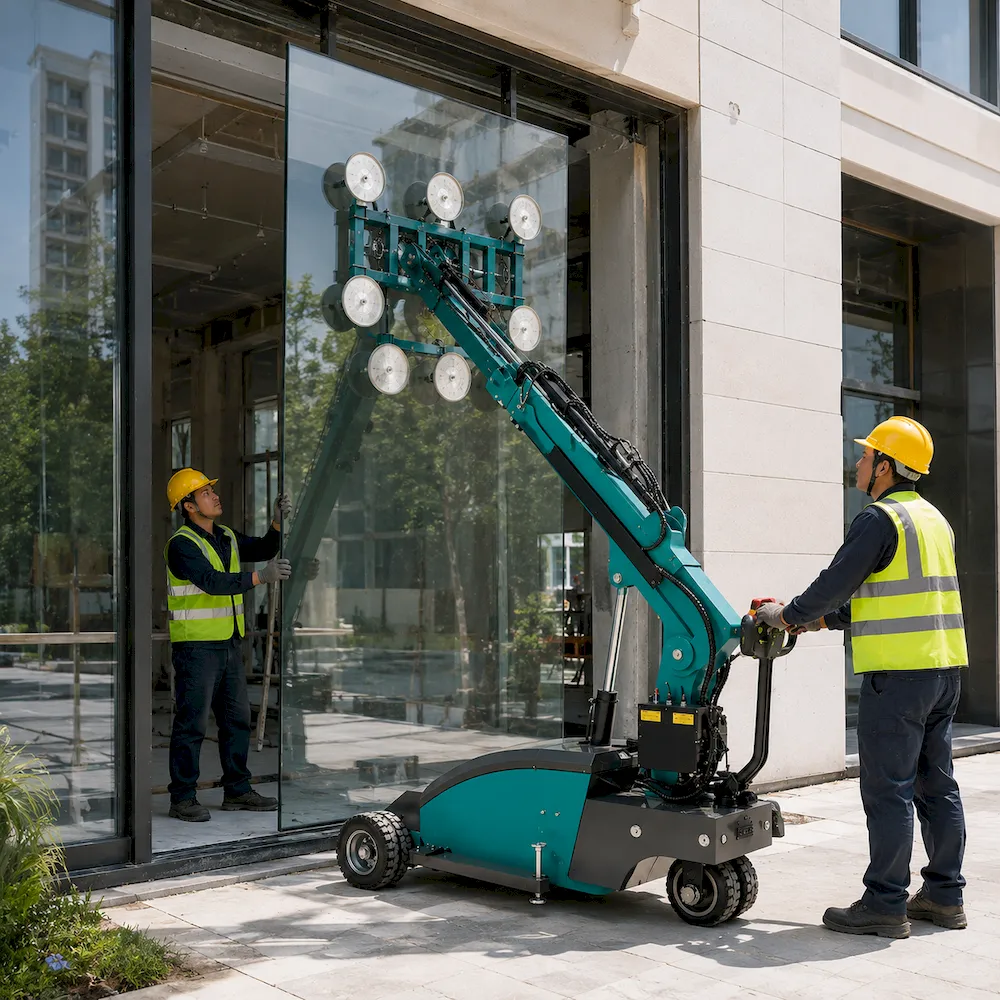

Glass Door & Window Installation

Glass Door & Window Installation

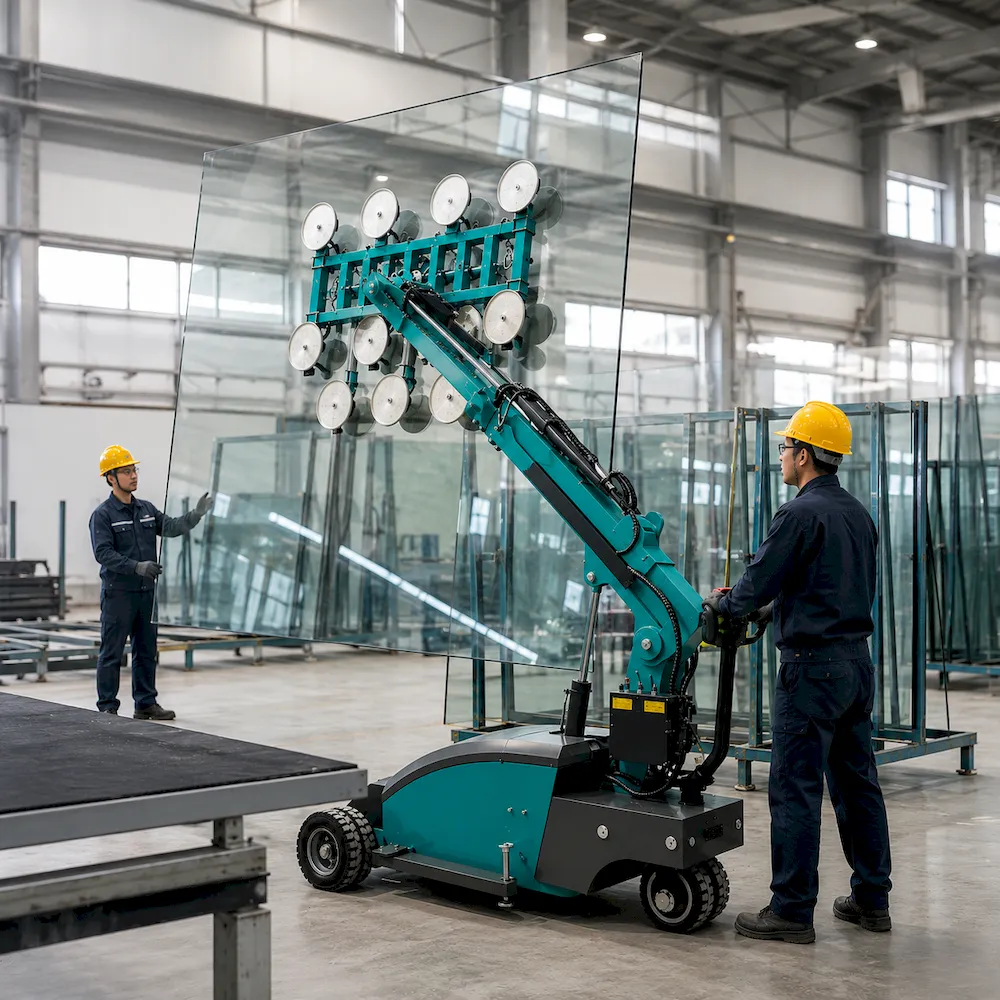

Glass Factory Handling

Glass Factory Handling

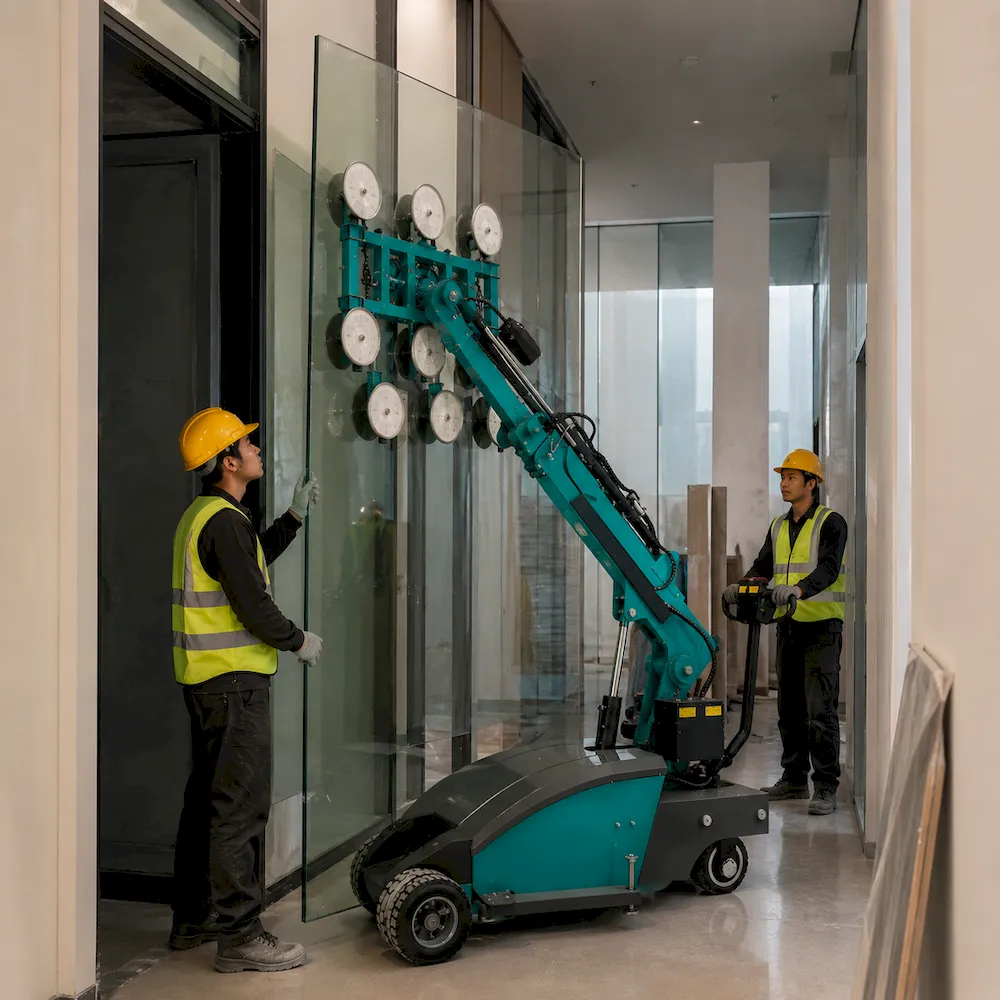

Indoor Narrow-Space Handling

Indoor Narrow-Space Handling

FAQ

Frequently Asked Questions About Glass Manipulators

How do I choose the right glass manipulator model?
The right model depends on glass size, glass weight, lifting height, installation angle, access width, indoor or outdoor use, and whether you need electric rotation, side-turning, side-shift, or remote control. You can share your project details with Leepa, and our team will help recommend a suitable model.
The glass manipulator series covers different capacity options, including compact trolley models, 300kg to 800kg glass manipulator models, and heavy-duty configurations for large glass panels. Actual safe working capacity depends on glass size, suction cup layout, working angle, and site conditions.
Yes. Selected models support manual 360° rotation and manual side-turning. Electric rotation, electric side-turning, and remote control can also be configured according to project requirements.
Selected glass manipulator models can achieve electric walking, lifting, telescopic extension, tilting, and side-shift without external power supply or air source. The exact configuration should be confirmed according to the chosen model.
Leepa supports overseas buyers with model selection, technical parameter confirmation, quotation, customization, packaging, export documentation, spare parts supply, and after-sales guidance. We can also support distributors, rental companies, and glazing contractors with long-term cooperation.
