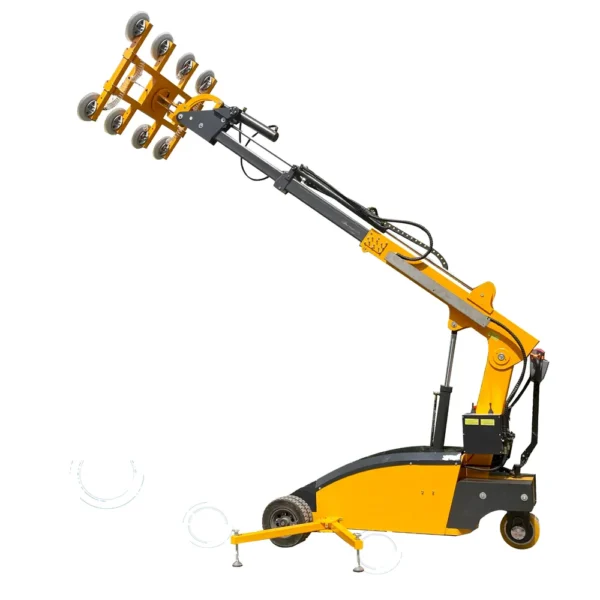

800KG Glass Manipulator

The 800kg Glass Manipulator is a glass robot with heavier lifting capacity,max height reach 5m. Rear wheel drive makes it very maneuverable with a tight turning radius. Dual system control, one vacuum system working and one standby. During use, electric walking, electric lifting, electric telescopic, electric tilting, electric side-shift can be achieved without the help of power supply or air sources. It can rotate and side turning by manual, electric type for optional. Equipped with Panasonic digital display pressure sensors to detect the safe operation of the equipment.

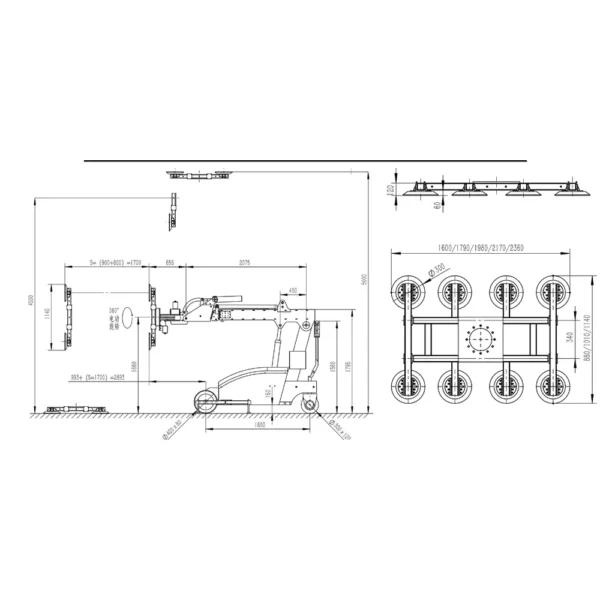

Product Specification

Glass Manipulator RYG
Load Capacity 800kg
Rotation Manual 360°
Max. Lifting Height 4500 / 5000mm
Operation Walkie Type
Battery 2×12V / 150A
Charger 24V / 18A
Driving Motor 24V / 1500W
Lifting Motor 24V / 2200W
Width 1070mm
Length 2800 / 3000mm
Front Wheel Size / QTY 400×90mm / 4 pcs
Rear Wheel Size / QTY 300×100mm / 1 pc
Pads Size / QTY 300mm / 8 pcs
Side-shift Left & Right 75mm
Electric Functions
  1. Suction frame up/down electric lifting, 180°
  2. Front boom telescopic extension: 610 / 710mm
  3. Electric hydraulic boom lifting
  4. Front wheel steering enables the machine body to move left and right within a 100mm range
Manual Functions
  1. Suction frame left/right manual tilting, 90°
  2. Suction frame manual rotation, 360°
Optional Configuration Electric rotation, electric side-turning, and wireless remote control are available on request.
