TBL Series Towable Articulated Spider Lift

Leepa TBL Series towable articulated aerial work platforms are designed for flexible and efficient high-altitude operation. With articulated boom structure, multiple power options, and compact towing design, they are suitable for indoor decoration, building maintenance, road and bridge construction, and electric power maintenance projects.
View All Models
Get a Custom Quote

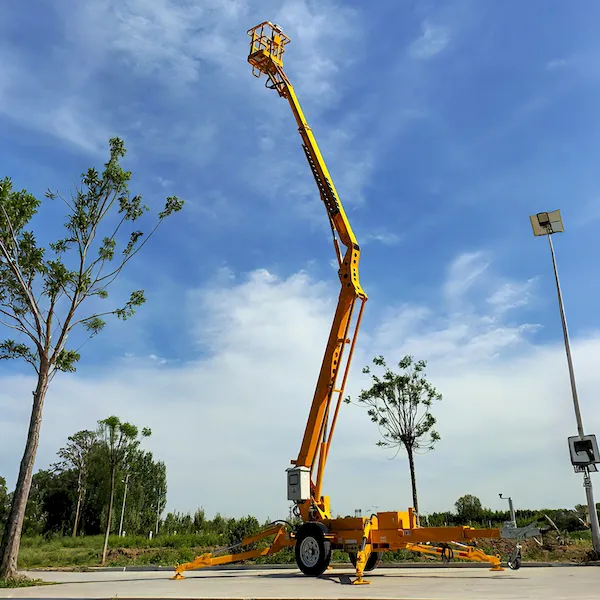

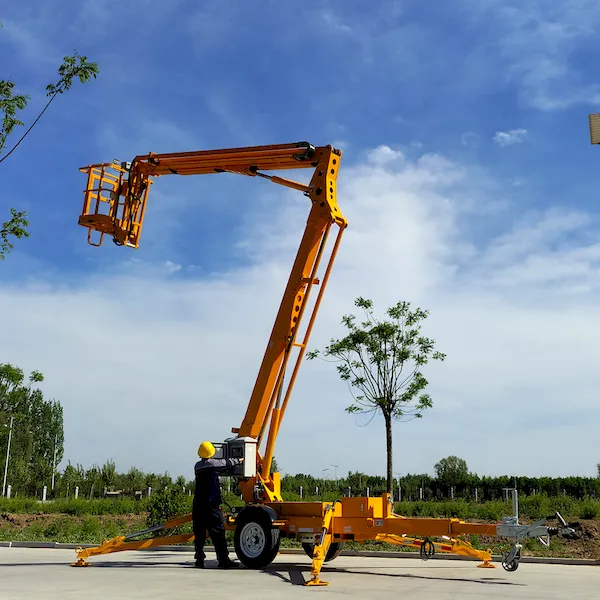

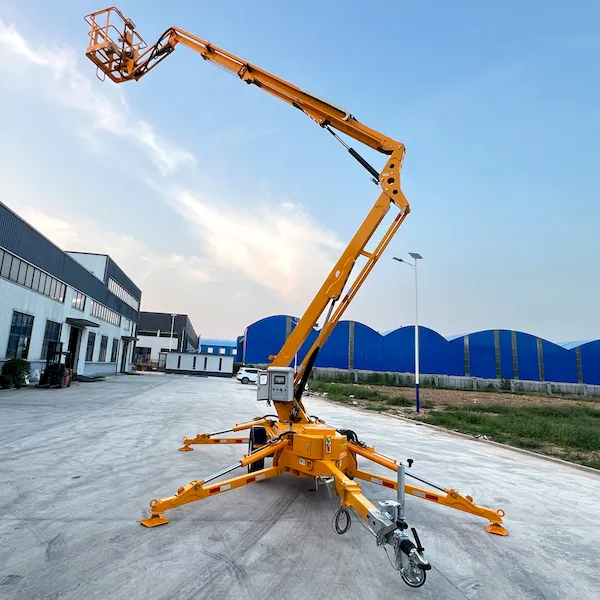

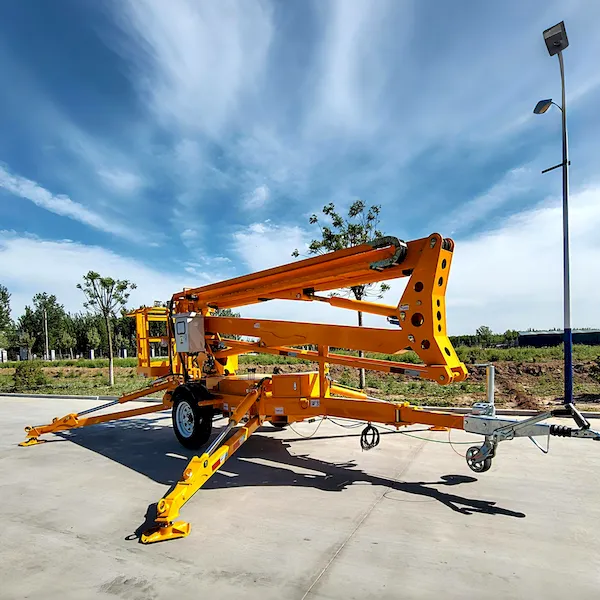

Towable Articulated Spider Lift
Towable Articulated Spider Lift
Towable Articulated Spider Lift
Towable Articulated Spider Lift
Towable Articulated Spider Lift
Working Height
10–22 m
Load Capacity
200 kg
Working Radius
5.8–12 m
Rotation Range
360° / 359°
Product Features

Built for Flexible, Stable, and Safe Aerial Work

The TBL Series combines practical boom structure, high-strength materials, stable hydraulic control, and flexible power options to support a wide range of real worksite needs.

Flexible Articulated Reach

The articulated boom helps operators reach elevated work points from different directions, making it suitable for complex access conditions.

360° Turntable Rotation

Continuous turntable rotation supports more efficient positioning during aerial operation and reduces repeated machine adjustment.

T700 High-Strength Steel

The frame uses T700 high-strength special steel, helping balance structural rigidity, equipment strength, and lighter dead weight.

Stable Hydraulic System

Medium and high-pressure hydraulic design with double-acting cylinders and safety valves supports stable lifting and reliable self-locking.

Multiple Power Options

Diesel, gasoline, battery, and external power configurations are available for different indoor and outdoor working environments.

Optional Smart Functions

Optional functions include platform rotation, remote travelling, remote lifting control, overload alarm, and one-click leveling.

Model List

Towable Articulated Spider Lift Models

Compare TBL Series models by working height, platform height, working radius, total weight, and overall size. For final selection, Leepa can recommend a suitable model according to your working environment and project needs.
Basic Product Parameters
Model TBL-10 TBL-12 TBL-12A TBL-14 TBL-16 TBL-18 TBL-20
Maximum Working Height 12M 14M 14M 16M 18M 20M 22M
Maximum Platform Height 10M 12M 12M 14M 16M 18M 20M
Load Capacity 200KG 200KG 200KG 200KG 200KG 200KG 200KG
Working Radius 5.8M 6.5M 7.5M 8.5M 10.5M 12M 12M
Total Weight 1900kg 1950kg 1950kg 2300kg 2600kg 3300kg 3800kg
Rotation Range 360° / 359° Non-Continuous Rotation (Selectable)
Platform Size 700*900*1100mm  (customizable)
( L*W*H) Overall Size (M) 5.2*1.7*2.1 6.2*1.7*2.1 4.7*1.7*2.1 5.5*1.7*2.2 5.65*1.7*2.25 5.5*1.7*2.2 6.5*1.8*2.25
Power Diesel/Gasoline/AC/DC  (Power Options Available)
Voltage standard 220V 2.2KW  (customized)
Emission standard: Diesel is Euro III, gasoline is Euro V,  (customized)
Tools and Spare Parts Included One Toolbox per Unit
One Safety Helmet and One Safety Harness per Unit
Two Toggle Switches per Unit
One Set of Cylinder Seals per Unit
One Standard Trailer Ball Head per Unit
One Pair of Gloves per Unit
Operation Manual
Product Overview

Flexible Height Access for Indoor and Outdoor Worksites

The TBL Series towable articulated spider lift is suitable for projects that need both working height and flexible outreach. Compared with ordinary vertical lifts, the articulated boom structure can help operators reach work points from different angles.
TBL14 and higher models can be equipped with telescopic boom structure, while the turntable supports continuous 360° rotation. The working platform can also be configured with optional 359° / 360° rotation according to project requirements.
  • Articulated boom structure for flexible height and outreach operation.
  • Compact towable design for convenient movement between different worksites.
  • Multiple power options including diesel, gasoline, battery, and external power supply.
  • Suitable for indoor decoration, construction, facility maintenance, and power maintenance.
Product Details

Reliable Components for Safe and Stable Scissor Lift Operation

Leepa scissor lifts are built with practical structural design, stable hydraulic components, user-friendly controls, and durable surface protection. These details help support safer operation, longer service life, and more efficient aerial work in different jobsite environments.

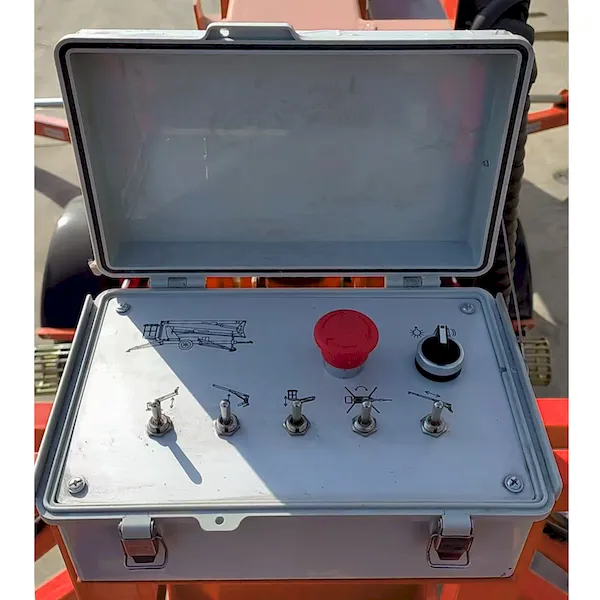

Upper Control Panel

01 Upper Control Panel

The basket-mounted upper control panel allows operators to manage boom movement directly from the working platform. Clearly marked switches and an emergency stop button help make daily operation simple, responsive, and safer during elevated work.

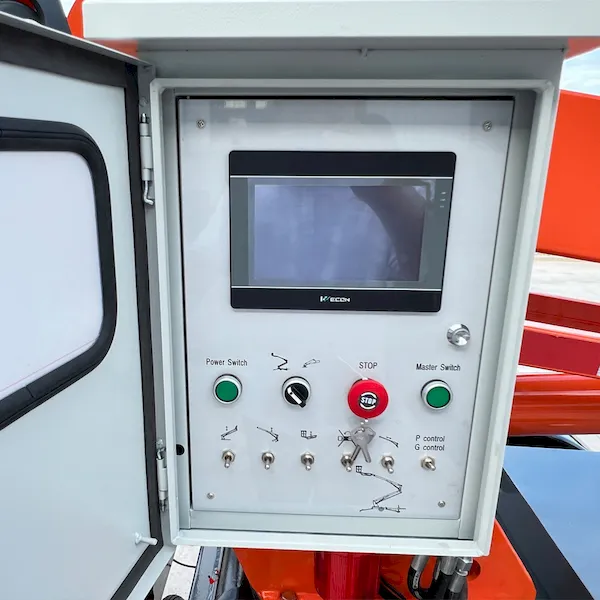

Lower Digital Control Panel

02 Lower Digital Control Panel

The lower control panel is equipped with a digital display and clearly arranged control switches for ground-level operation. It allows staff to monitor equipment status, control key functions, and assist platform operators when needed.

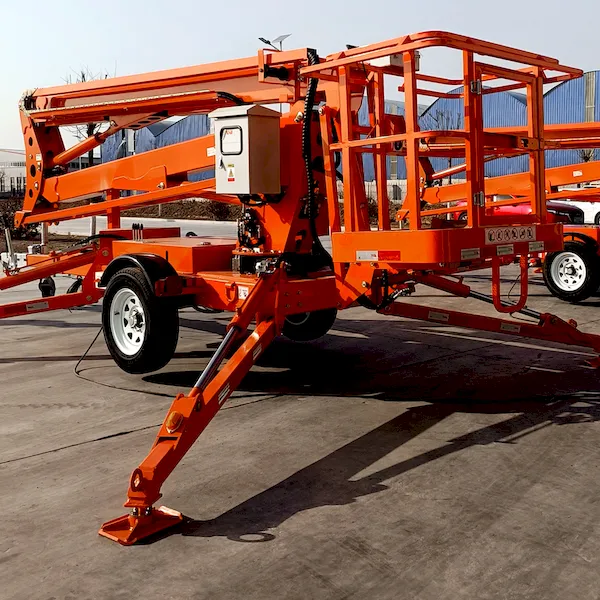

Hydraulic Outrigger Support

03 Hydraulic Outrigger Support

The hydraulic outriggers provide stable ground support before lifting operation. The wide support structure helps improve machine stability, especially when working at height or on outdoor jobsite surfaces.

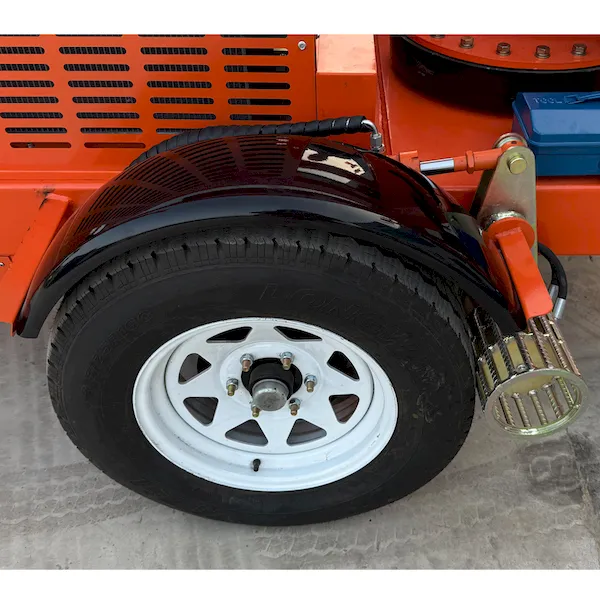

Towable Tire System

04 Towable Tire System

The durable trailer tire system is designed for convenient towing and jobsite transfer. It supports smooth movement between work locations and helps reduce transportation effort for maintenance, construction, and outdoor projects.

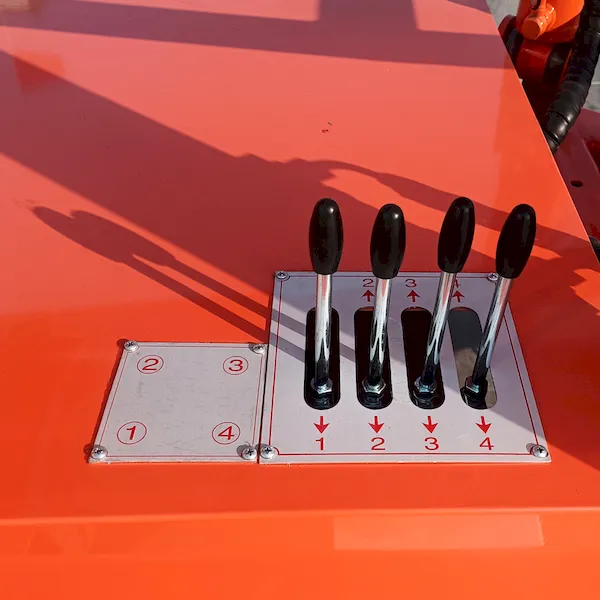

Outrigger Control Levers

05 Outrigger Control Levers

The independent outrigger control levers make leveling and setup more direct and practical. Operators can adjust each support leg according to the ground condition, helping prepare the lift for safer operation.

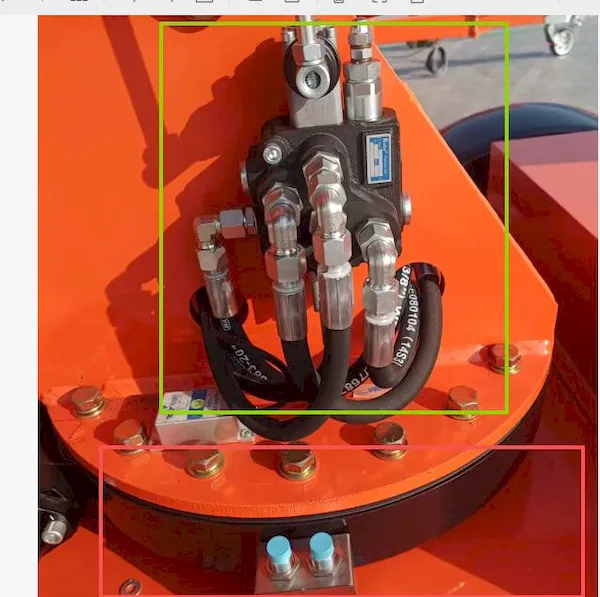

Basket Leveling Valve & Slewing Support

06 Basket Leveling Valve & Slewing Support

The basket leveling valve and slewing support system help maintain platform stability during boom movement and rotation. This design supports smoother operation, better working comfort, and safer positioning at height.

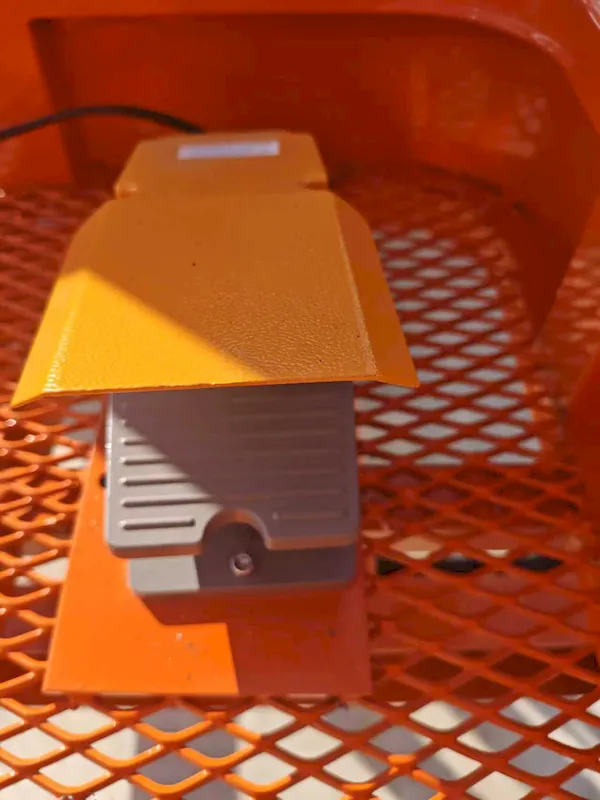

Basket Foot Pedal

07 Basket Foot Pedal

The basket foot pedal provides additional operation control from the platform. It helps improve operator convenience and can support safer, more controlled movement during aerial work.

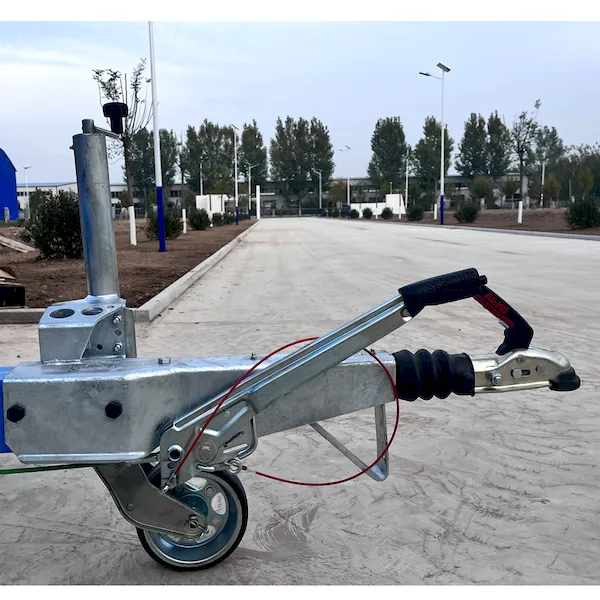

Tow Bar Assembly

08 Tow Bar Assembly

The heavy-duty tow bar assembly is designed for reliable connection and transport. Its practical structure makes the equipment easier to move between worksites using a suitable towing vehicle.

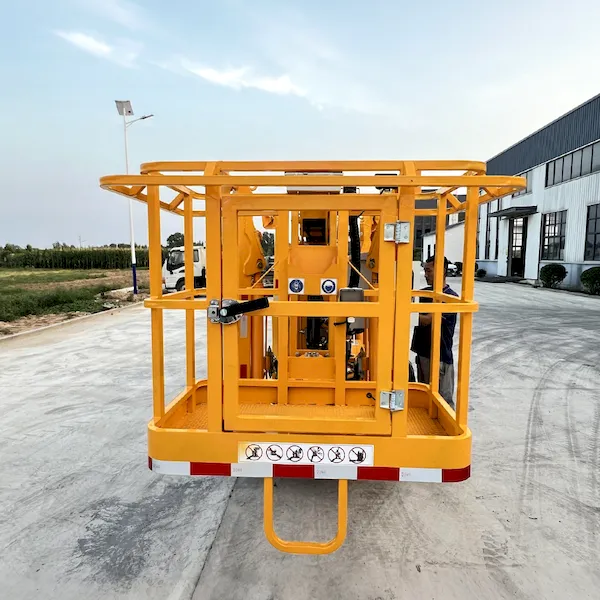

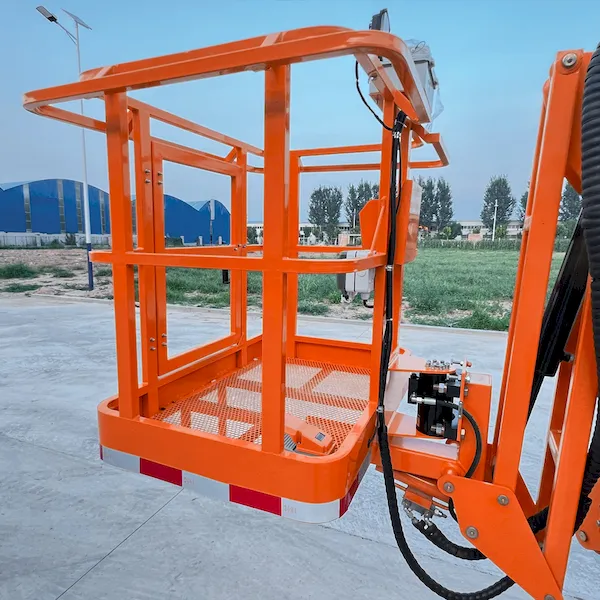

Working Basket

09 Working Basket

The reinforced working basket provides a stable platform for operators and tools. Its guardrail structure, spacious standing area, and practical access design help support safe and efficient elevated work.
Applications

Suitable for a Wide Range of Aerial Work Projects

TBL Series towable articulated spider lifts are suitable for jobsites that require flexible height access, outreach capability, and convenient equipment transfer.

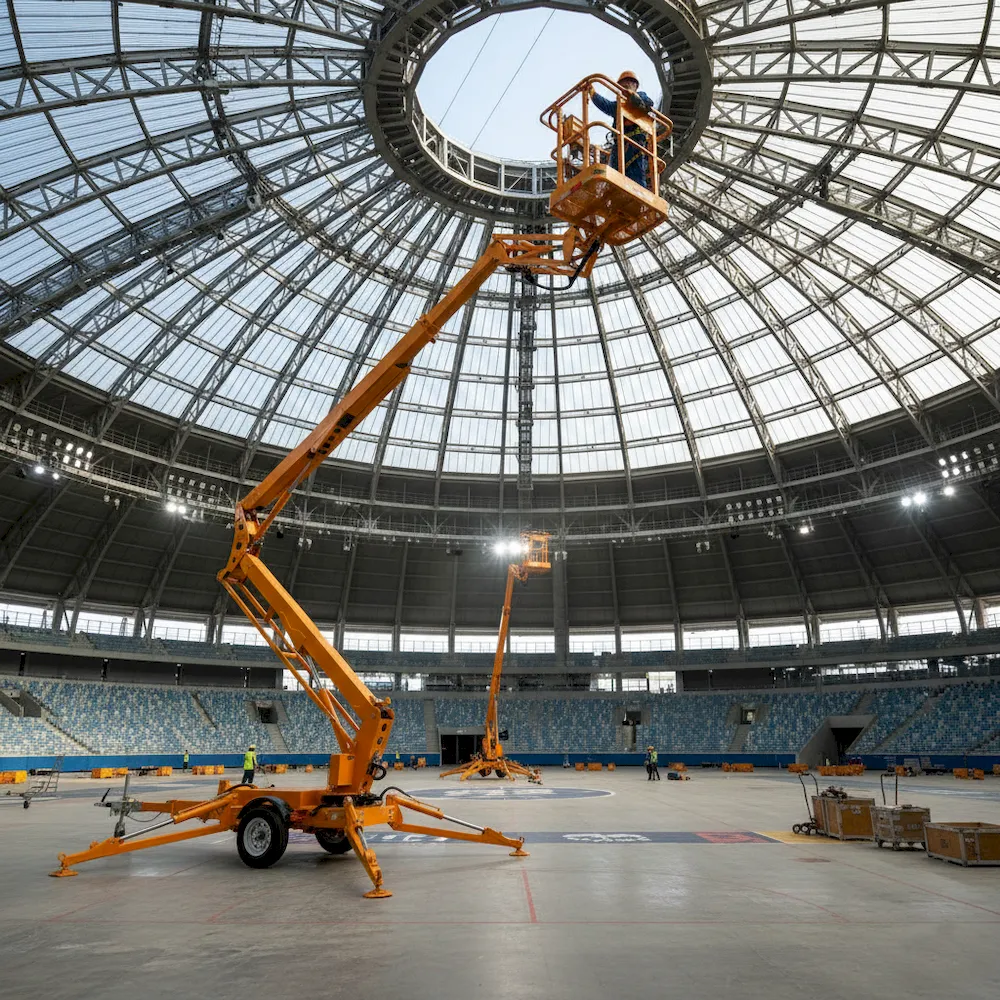

Interior Decoration

Interior Decoration

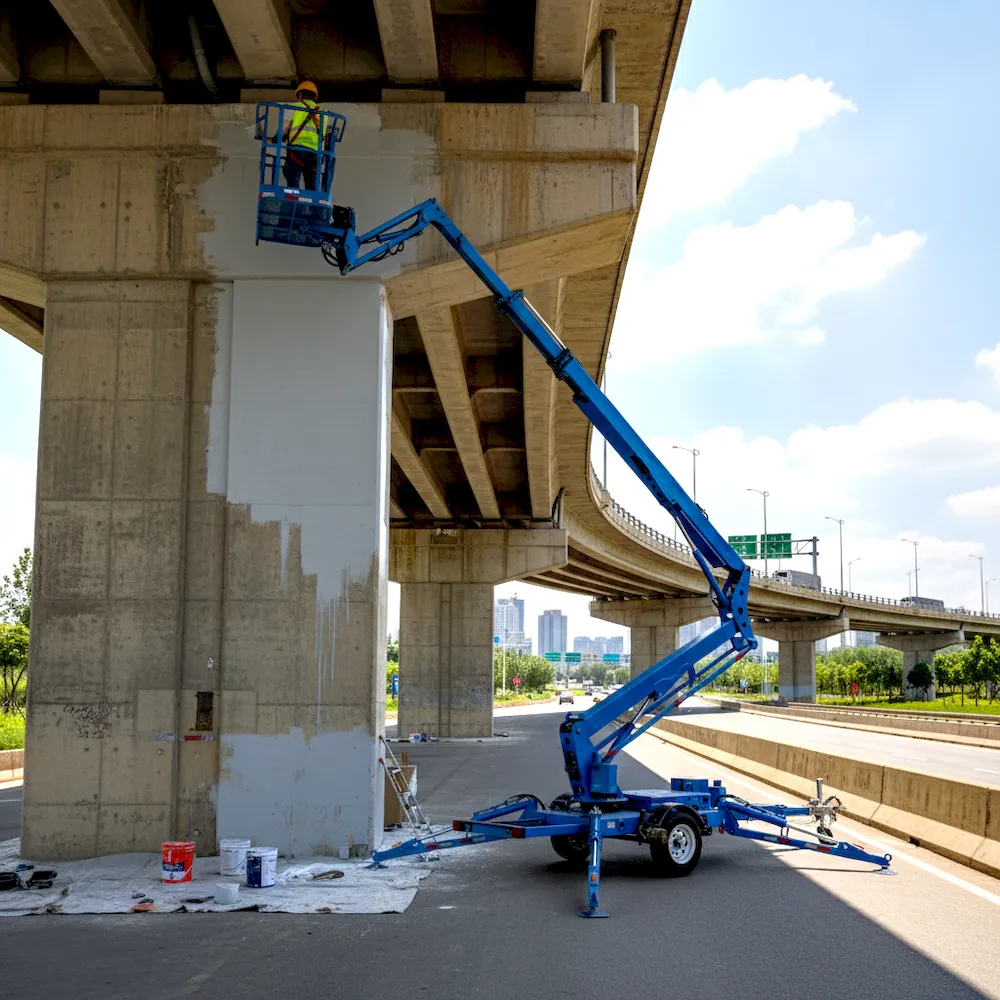

Road & Bridge Construction

Road & Bridge Construction

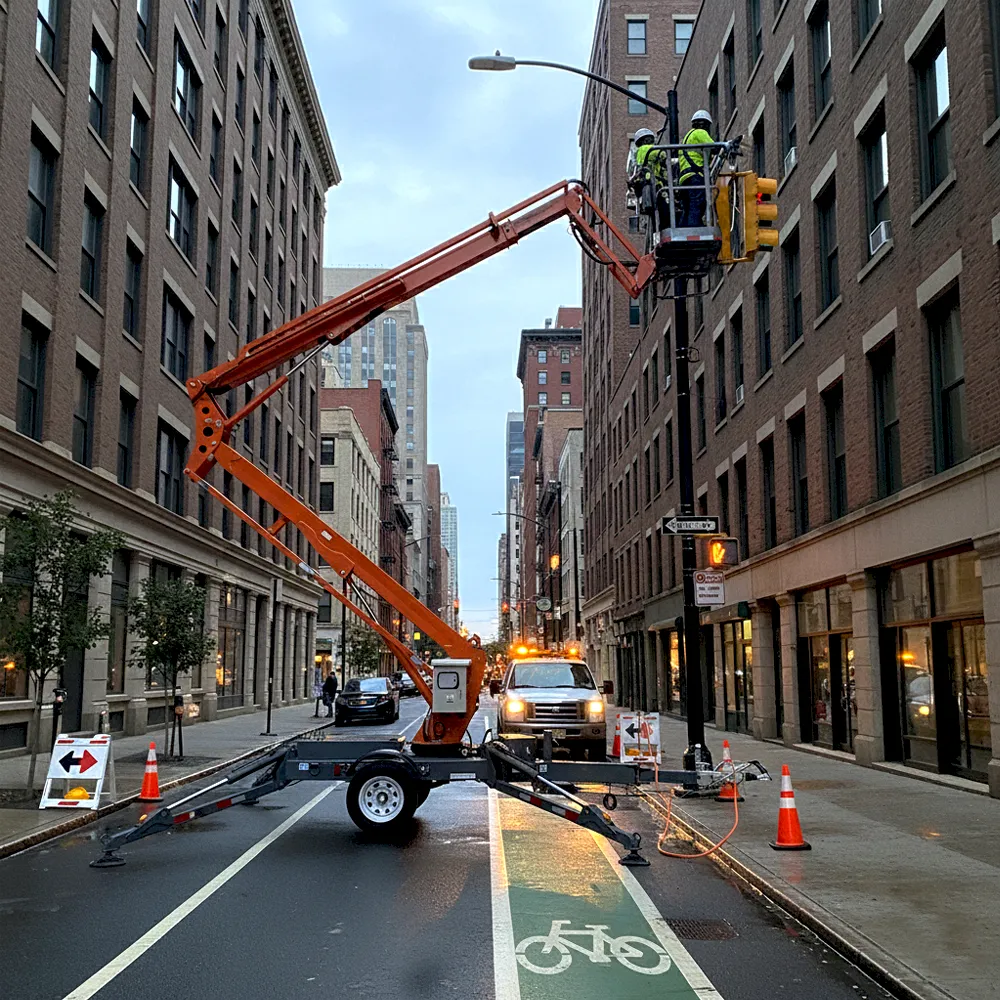

Building Construction & Maintenance

Building Construction & Maintenance

Electric Power Maintenance

Electric Power Maintenance

FAQ

Common Questions About Towable Articulated Spider Lifts

What model should I choose for my project?
Please provide working height, required outreach, platform load, site condition, power preference, and destination. Leepa will help compare suitable TBL models.
TBL Series can be configured with diesel engine, gasoline engine, battery, or external power supply according to indoor or outdoor use conditions.
The working platform is available with optional 359° / 360° rotation, and the turntable supports 360° continuous rotation depending on model configuration.
