LBL Series Crawler Articulated Spider Lift

Leepa LBL Series crawler articulated aerial work platforms are designed for confined spaces and complex outdoor working conditions. With rubber crawler chassis, articulated and telescopic boom structure, flexible steering, and multiple power options, they are suitable for indoor renovation, bridge and road construction, power maintenance, landscaping, and municipal engineering.
View All Models
Get a Custom Quote

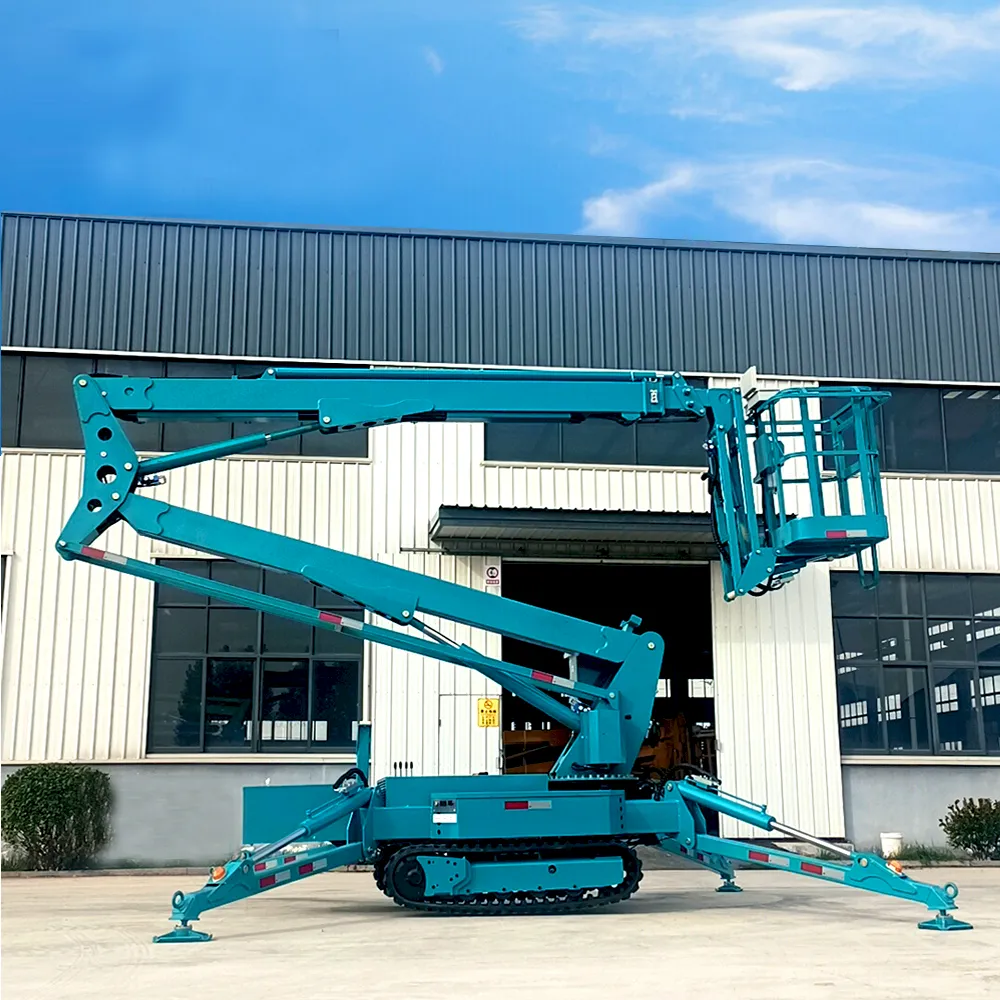

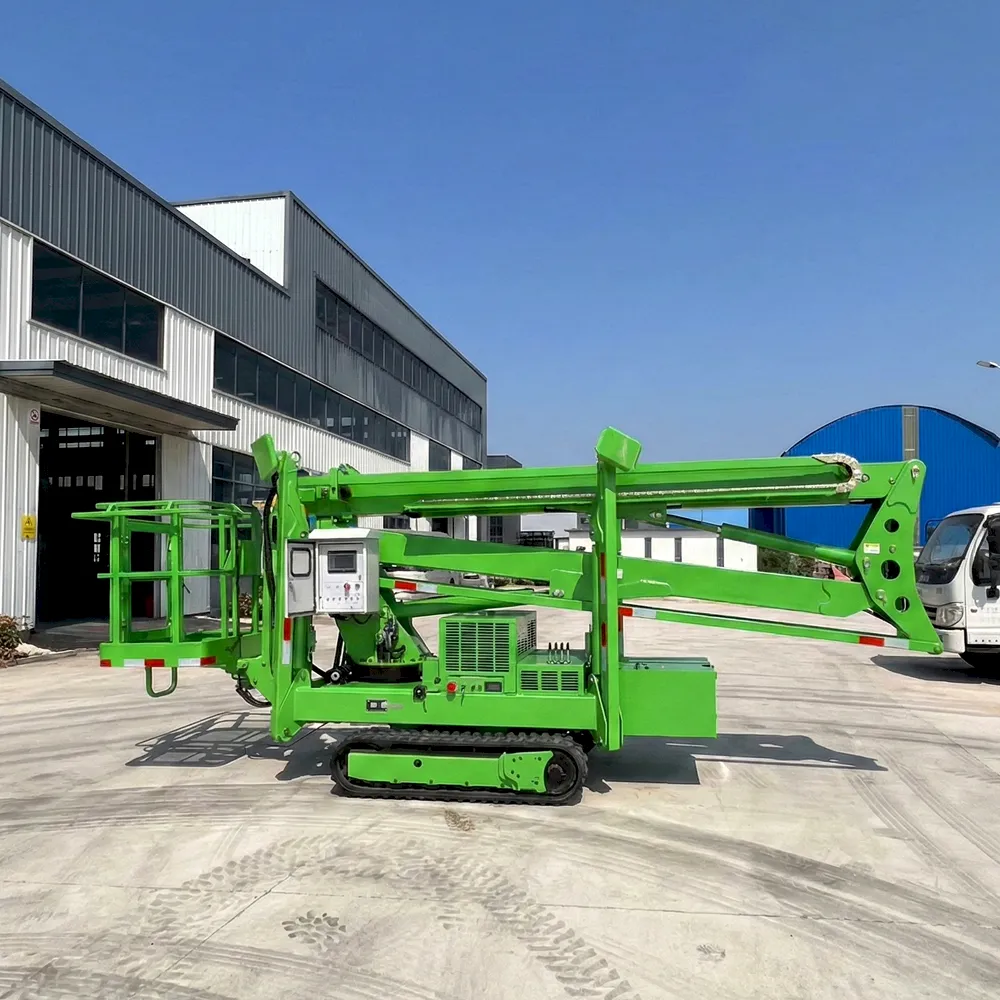

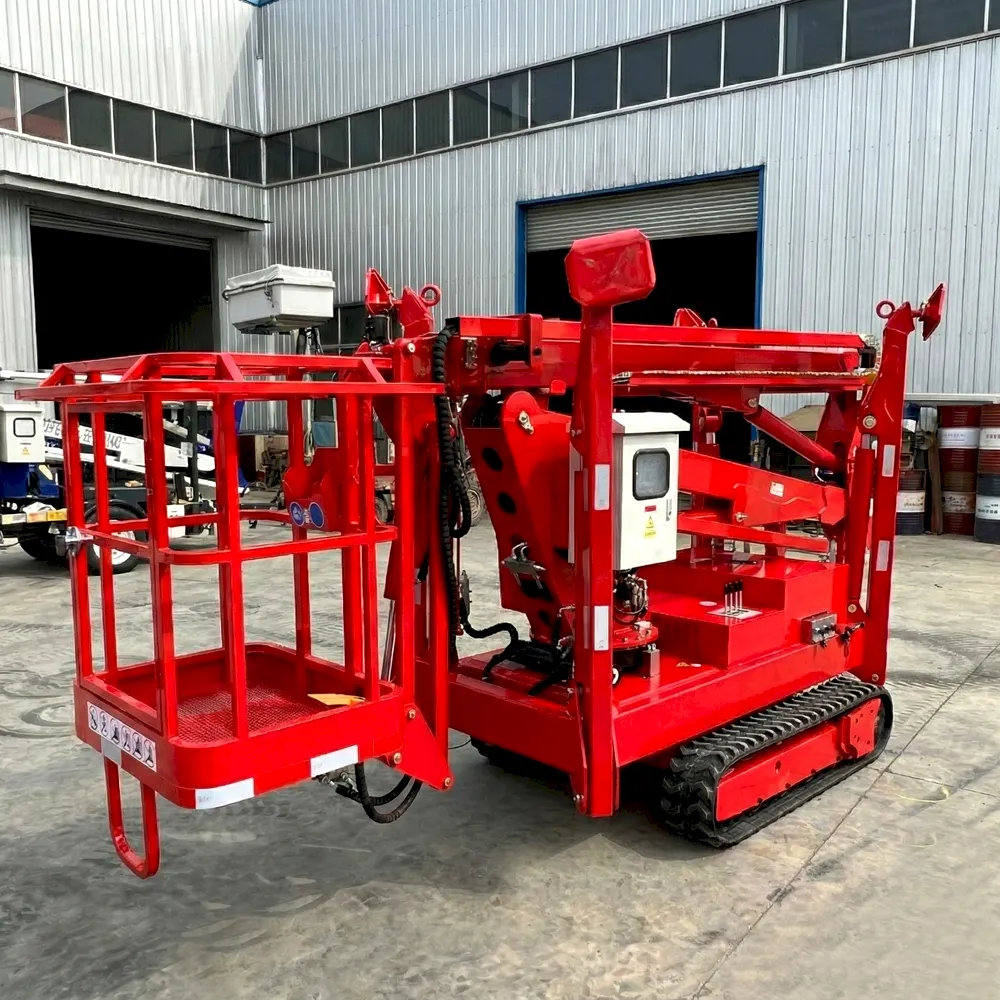

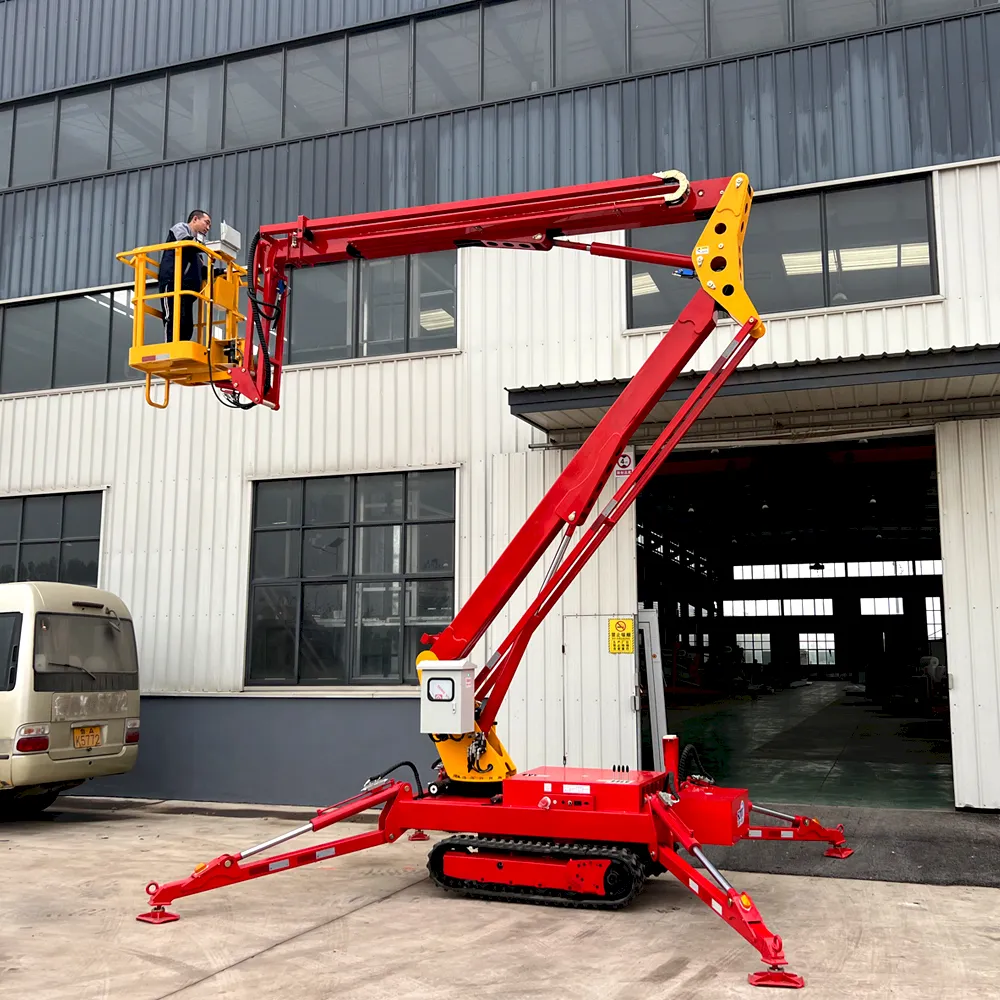

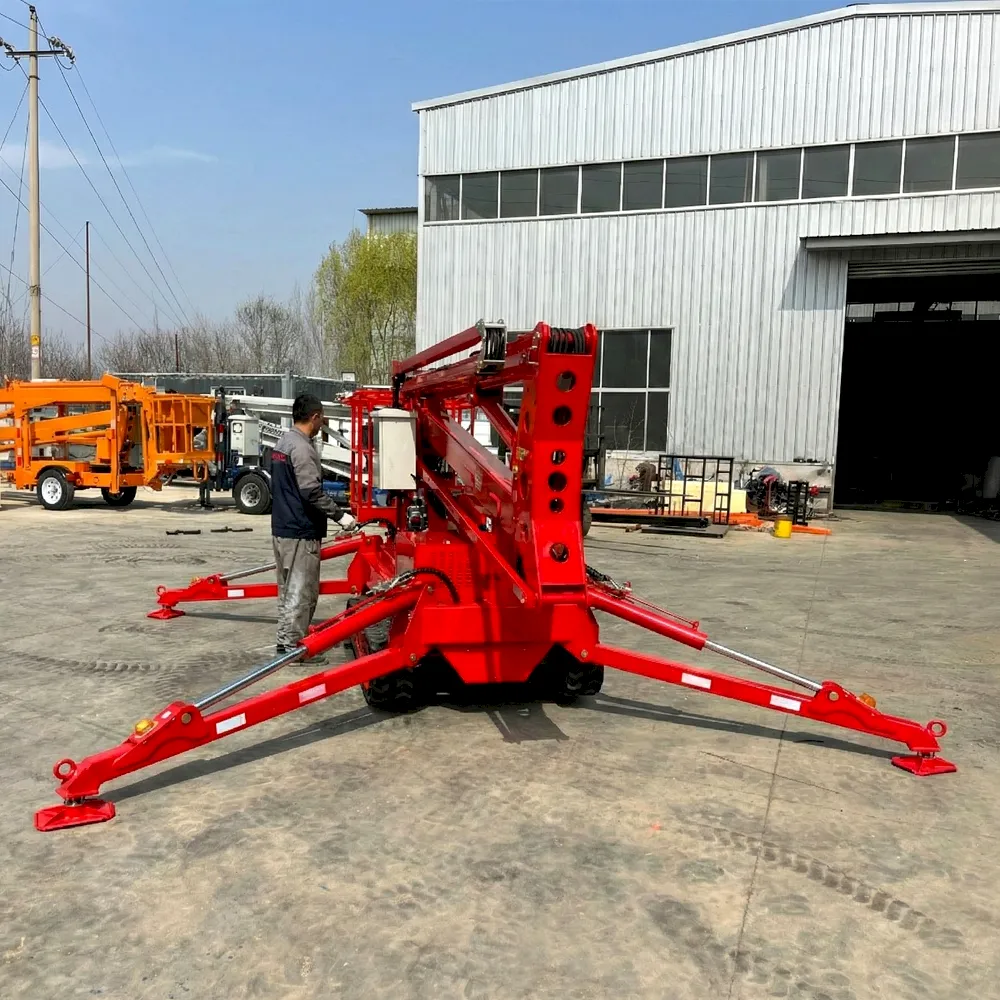

Crawler Articulated Spider
Crawler Articulated Spider
Crawler Articulated Spider
Crawler Articulated Spider
Crawler Articulated Spider
Working Height
10–22 m
Load Capacity
200 kg
Working Radius
5.5–11 m
Drive System
Rubber Crawler
Product Features

All-Terrain Mobility, Flexible Reach, and Reliable Safety Protection

The LBL Series combines a crawler chassis, high-strength steel structure, stable hydraulic system, dual controls, and multiple safety configurations for demanding aerial work environments.

All-Terrain Crawler Chassis

Widened wear-resistant rubber crawlers provide large contact area and low ground pressure, helping protect epoxy floors, tiles, and asphalt surfaces.

Obstacle-Crossing Boom Design

Articulated and telescopic boom structure helps bypass obstacles and expand working coverage in restricted or complex sites.

Full-Range Rotation

The turntable supports 360° continuous rotation, and the platform can be configured with optional 359° / 360° rotation.

T700 High-Strength Steel

The main frame adopts T700 high-tensile special steel, offering high compression resistance, lighter structure, and stronger deformation resistance.

Dual Easy Control System

Ground and platform dual operation consoles, electric control handles, standard travel remote, and optional lifting remote help simplify operation.

Multiple Safety Protections

Cylinder burst-proof valves, automatic hydraulic platform leveling, and manual emergency leveling help improve safety during high-altitude operation.

Model List

Crawler Articulated Spider Lift Models

Compare LBL Series models by working height, platform height, working radius, total weight, and overall size. For final selection, Leepa can recommend a suitable crawler lift according to site ground conditions, access space, working height, and application needs.
Basic Product Parameters
Model LBL-10 LBL-12 LBL-14 LBL-16 LBL-18 LBL-20
Maximum Working Height 12M 14M 16M 18M 20M 22M
Maximum Platform Height 10M 12M 14M 16M 18M 20M
Load Capacity 200KG 200KG 200KG 200KG 200KG 200KG
Working Radius 5.5M 7.5M 8.5M 10.5M 11M 11M
Total Weight 2400kg 2500kg 2800kg 3000kg 4500kg 4500kg
Rotation Range 360° / 359° Non-Continuous Rotation (Selectable)
Platform Size 700*900*1100mm  (customizable)
( L*W*H) Overall Size (M) 4.7*1.3*2 4.7*1.3*2.1 5.65*1.3*2.2 5.7*1.35*2.2 6.1*1.3*2.25 6.7*1.5*2.25
Power Diesel/Gasoline/DC  (Power Options Available)
Voltage standard 220V 2.2KW  (customized)
Emission standard: Diesel is Euro III, gasoline is Euro V,  (customized)
Tools and Spare Parts Included One Toolbox per Unit
One Safety Helmet and One Safety Harness per Unit
Two Toggle Switches per Unit
One Set of Cylinder Seals per Unit
One Standard Trailer Ball Head per Unit
One Pair of Gloves per Unit
Operation Manual
Product Overview

Built for Narrow Sites, Uneven Ground, and Complex Access Work

The LBL Series crawler articulated spider lift is developed for jobsites where ordinary wheeled machines are difficult to move or position. The rubber crawler chassis provides better ground contact, lower ground pressure, and stronger adaptability on narrow passages and rough surfaces.
The combined articulated and telescopic boom structure helps operators bypass obstacles such as fences, trees, equipment, and building structures, making elevated work more flexible and efficient.
  • Rubber crawler chassis supports 360° in-situ steering and stable travel on complex ground.
  • Articulated and telescopic boom structure helps cross obstacles and reach difficult work points.
  • DC battery, diesel, and gasoline power options are available for different environments.
  • Suitable for indoor and outdoor work, especially narrow and complex construction areas.
Applications

Suitable for Complex Indoor and Outdoor Worksites

LBL Series crawler articulated spider lifts are suitable for work environments where ground conditions, access width, obstacles, or working angles make ordinary lifts difficult to use.

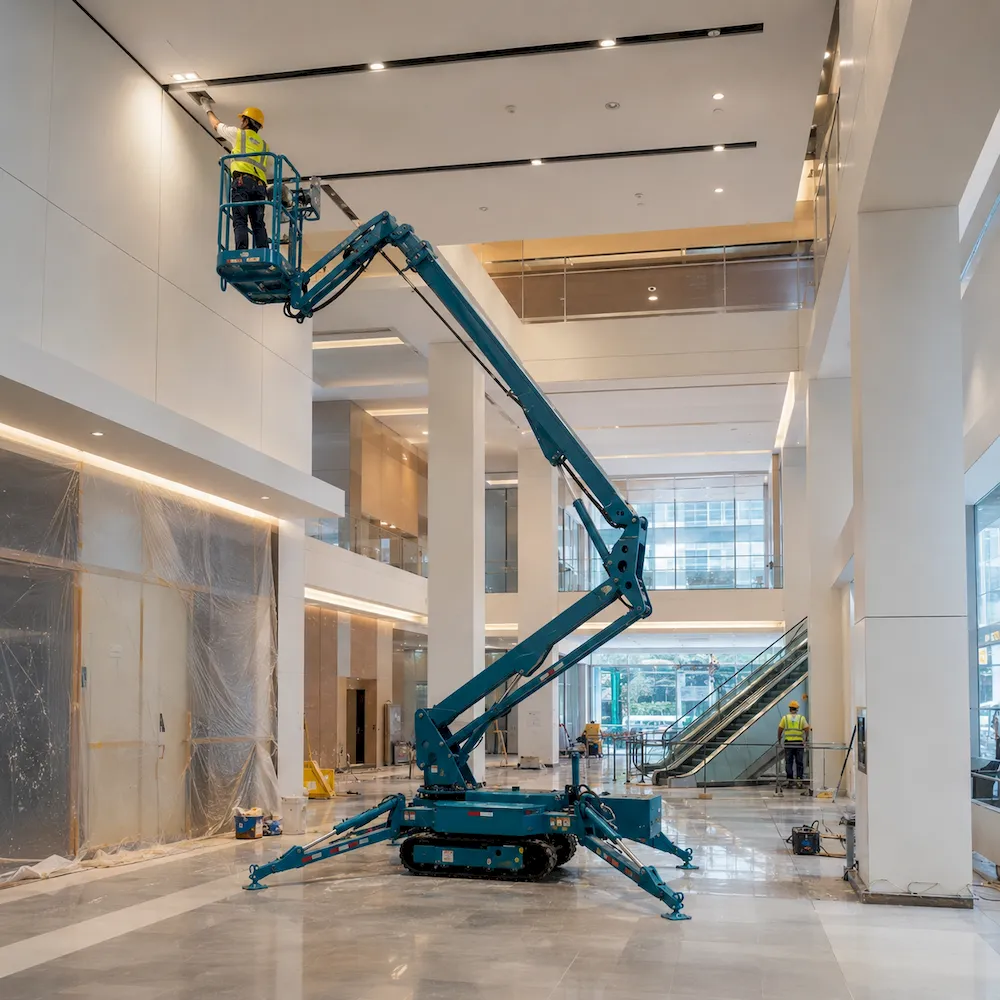

Interior Renovation

Interior Renovation

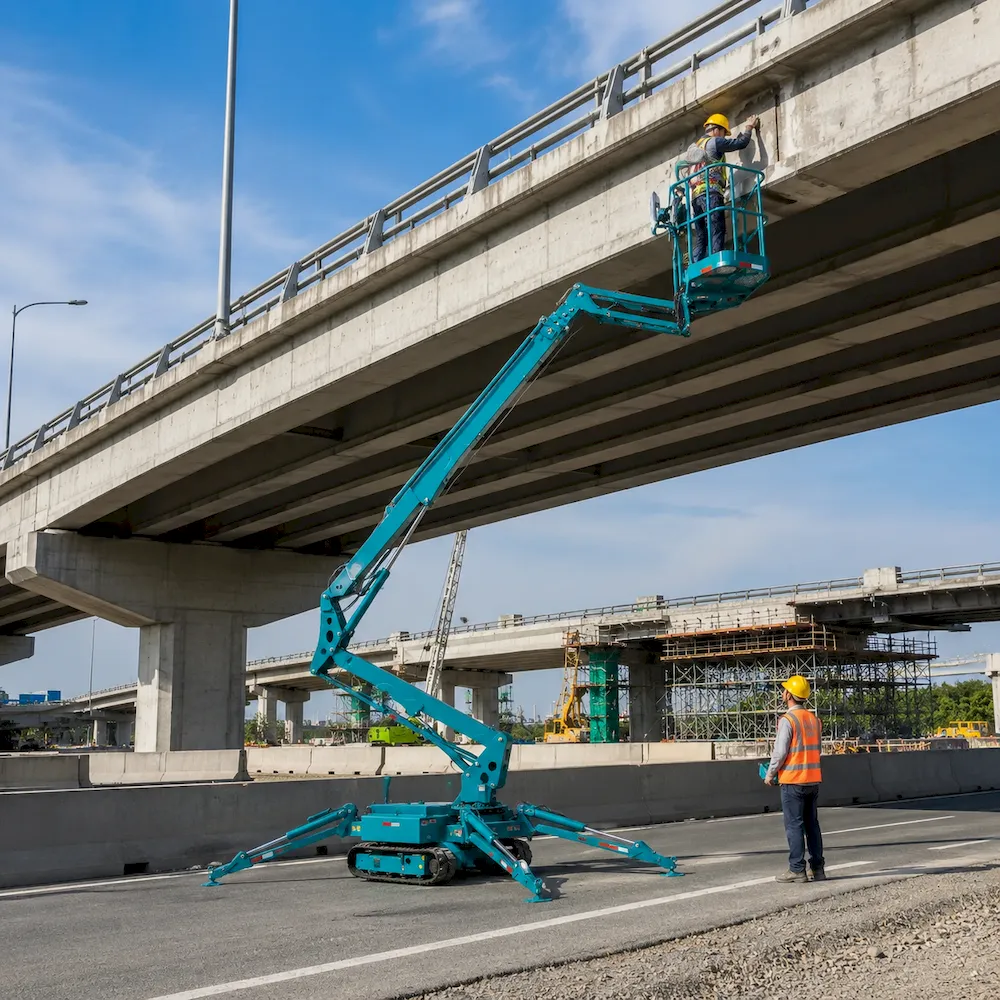

Road & Bridge Construction

Road & Bridge Construction

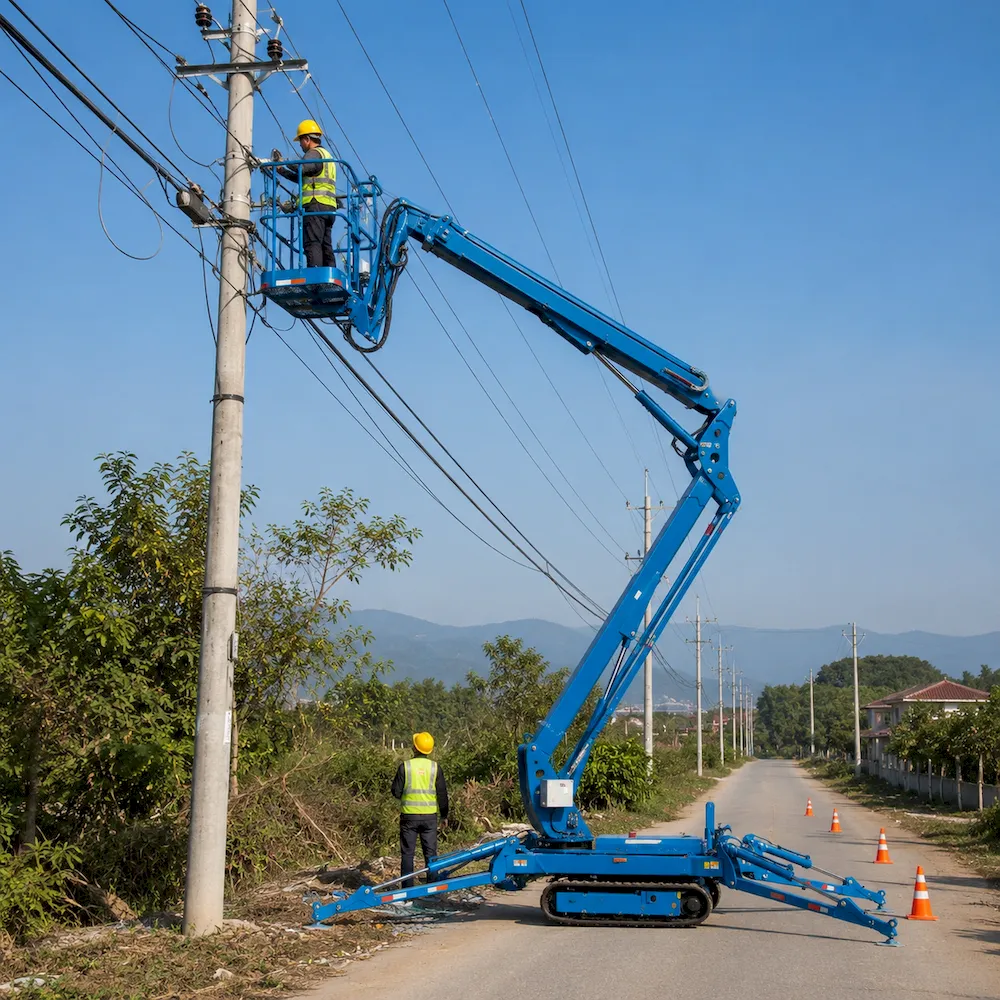

Power Maintenance

Power Maintenance

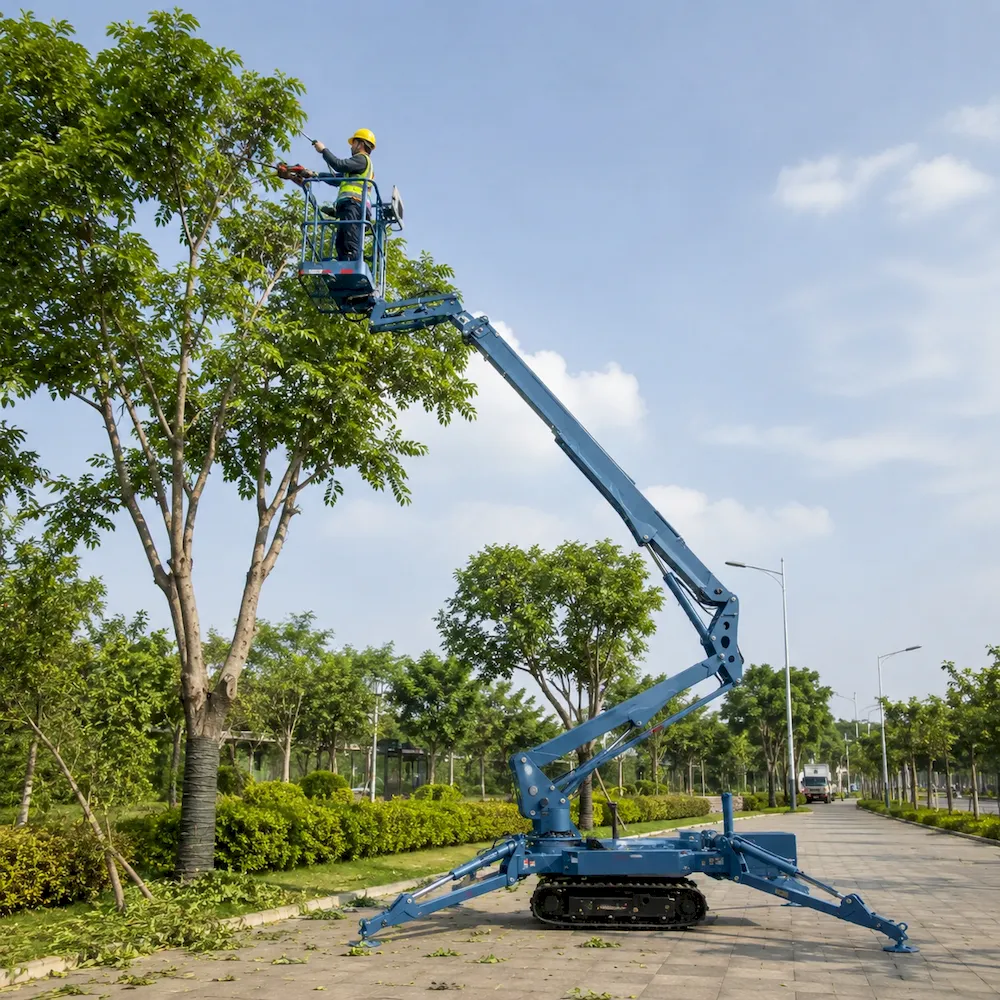

Landscaping & Municipal Engineering

Landscaping & Municipal Engineering

FAQ

Common Questions About Scissor Lifts

How do I choose the right crawler articulated spider lift model?
The right model depends on your required working height, platform load, working radius, access width, ground condition, and application environment. You can share your project details with Leepa, and our team will help compare suitable models and recommend a practical configuration for your worksite.
A crawler articulated spider lift offers better mobility on uneven or narrow worksites. Its rubber crawler chassis helps reduce ground pressure, while the articulated boom allows operators to reach work areas from different angles, especially when obstacles, walls, trees, or building structures are in the way.
Yes. The crawler spider lift can be used for indoor renovation, facility maintenance, atrium work, and other indoor high-access jobs. For indoor use, battery or external power options are recommended to reduce emissions and noise. Please confirm floor bearing capacity and access dimensions before operation.
Leepa can provide customization support for power configuration, voltage, platform size, color, control system, remote operation, leveling function, and other optional features. Custom requirements can be confirmed according to your local market, jobsite conditions, and project usage.
We support overseas buyers with model selection, technical parameter confirmation, quotation, packaging, export documentation, and after-sales guidance. Spare parts and operation support can also be provided to help distributors, rental companies, and project contractors manage long-term equipment use.
