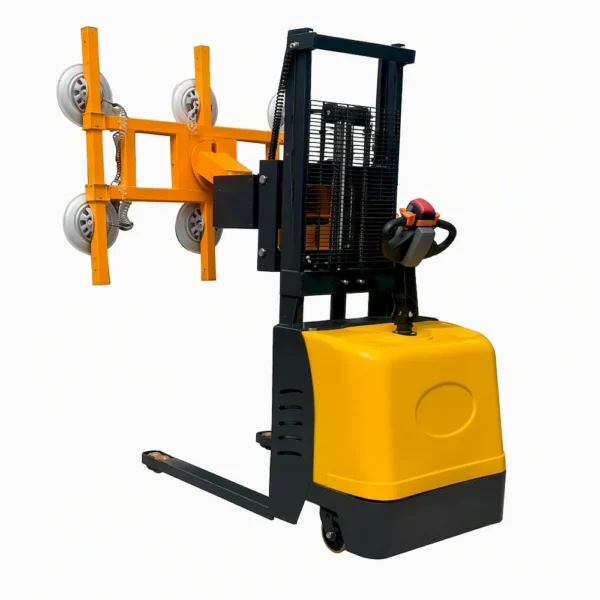

Vacuum Lifter Trolley

Electric Glass Stacker combines the advantages of a forklift and vacuum lifter. The manipulator adopts the principle of vacuum suction, which includes the functions of electrical lifting and lowering, electrical suction and release, electrical tilting. The functions of electrical side shift, electrical rotation and remote control are optional. It can easily realize the moving and handling of glass.
The machine is light and flexible in operation, and it is a new type of glass handling machinery with energy saving, high efficiency and environmental protection. It is widely used in glass door and window factories, curtain wall glass installation and glass sheet transportation, fully reflecting its excellent flexibility, stability and environmental protection performance.

Product Specification

Glass Lifter Model RYN-F
Load Capacity kg 300 / 400 / 500 / 600 / 800
Safe Load Capacity kg 300 / 400 / 500 / 600 / 800
Lifting Height mm 1600 / 1600 / 1600 / 1600 / 1600
Overall Height mm 2080 / 2080 / 2080 / 2080 / 2080
Overall Length mm 2200 / 2200 / 2300 / 2300 / 2350
Overall Width mm 850 / 850 / 850 / 850 / 850
Suction Frame Size mm 1000×800 / 1000×800 / 1600×900 / 1600×900 / 1600×900
Pad Size mm Φ300 / Φ300 / Φ300 / Φ300 / Φ300
Pad Qty. pcs 4 / 4 / 6 / 6 / 8
Rotating ° Without / Manual / Electrical 360°
Tilting ° Electrical 90°
Driving Speed (Load/Unload) km/h 4/6
Lifting Speed (Load/Unload) mm/s 80/130
Falling Speed (Load/Unload) mm/s 110/90
Brake Type / Electromagnetic Braking
Driving Wheel mm Φ250×80
Driving Wheel Type / Horizontal
Front Wheel mm Φ80×70×2
Driving Motor / Lifting Motor kw 1.2 | 1.6 / 1.2 | 1.6 / 1.5 | 2.0 / 1.5 | 2.0 / 1.5 | 2.2
Battery V/Ah 2×12/100 / 2×12/100 / 2×12/120 / 2×12/120 / 2×12/150
Control Type / Stepless Speed Regulation
