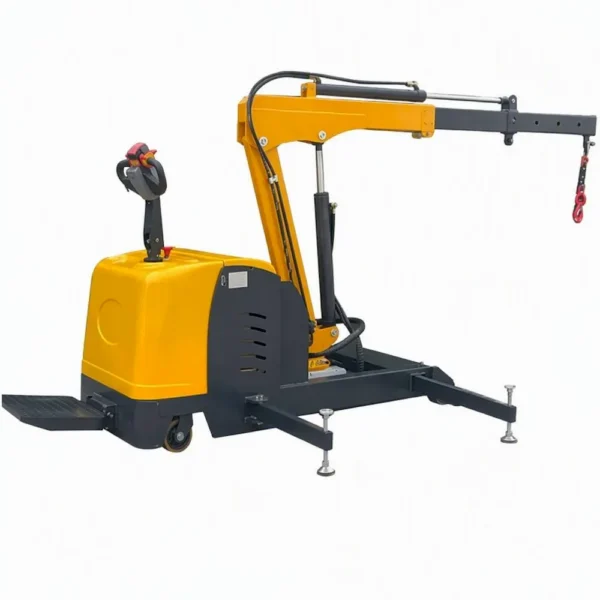

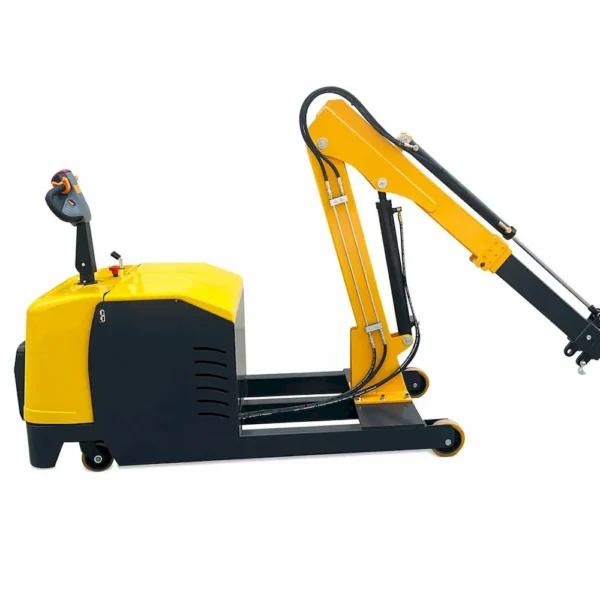

Electric Floor Crane

ELECTRIC FLOOR CRANE combines the advantages of a stationary crane and propelled truck, providing economical and efficient material handling. This equipment has the following features: Low noise and no pollution; Adjustable support legs; Comfortable operation and convenient charging; Flexible and reliable operation; Large wheel design, suitable for outdoor use.

Product Specification

Electric Floor Crane	EPFC	EPFC-W	EPFC-C	EPFC-R
Arm	1280+600+615	1280+600+615	1280+600+615	1280+600+615
Load Capacity	1200	1200	700	900
Load Capacity of 1st Arm	600	600	400	450
Load Capacity of 2nd Arm	300	300	200	250
Max. Lifting Height	3520	3520	3500	3550
Rotation	/	/	/	Manual / Electric
Rotation Angle	/	/	/	240
Front Wheel Size	2×150×50	2×150×50	2×180×50	2×180×50
Balance Wheel Size	2×150×50	2×150×50	2×150×50	2×150×50
Driving Wheel Size	250×80	250×80	250×80	250×80
Lifting Motor	2	2	1.8	1.8
Driving Motor	1.2	1.2	1.2	1.2
