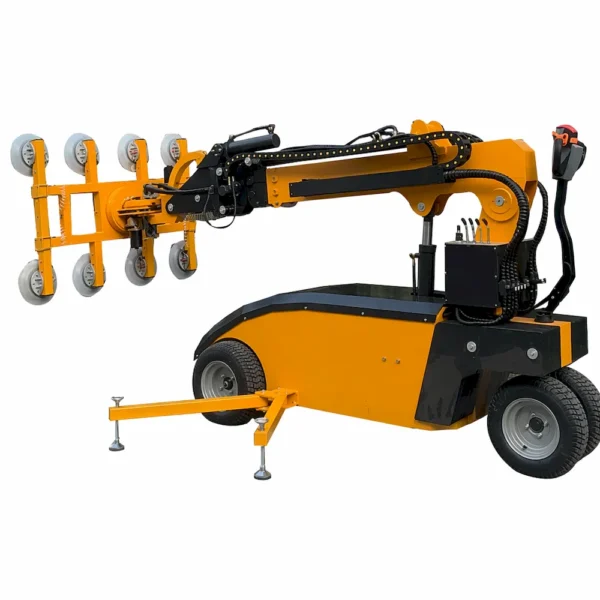

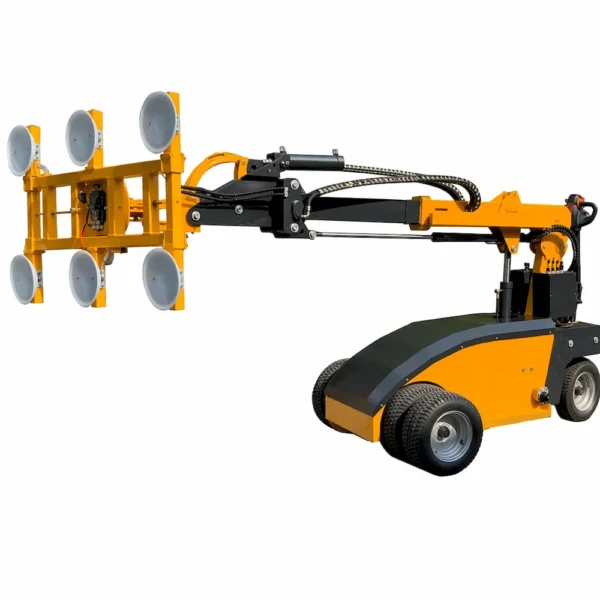

Glass Manipulator

Compared with RYG model types, This series is a senior machine with Front Axle driven, which have better road holding and friction force while driving with loads. Moreover, this model improved the controller from manual valves to remote controller, intuitive interface helped operation easier to find required function, and various options customized for special request as well.
1. Front driving,rough terrain wheels,can walk on bad situation road.Strong power, steady lifting and lowering.
2. Intelligent control system ,DC24V reliable actuators for lifting, extension and tilting.
3. Japan Panasonic sensor and Taiwan Airtac pneumatic controller system, no external air source is required.
4. Dual Vacuum System. One for normal operation and the other as spare system.

Product Specification

Glass Manipulator	/	RYG-F
Driving Mode	/	Front Axle Drive
Max. Load	kg	600 / 800
Rotating	°	Manual 360° Automatic type optional
Turn to Side	°	Manual 90° Automatic type optional
Lifting Height	mm	3700 / 4500 / 5000
Manipulation	/	Walkie Type
Power	/	Traction-type Free Maintenance Battery
Controlling Type	/	Stepless Adjusting Speed
Battery	V/Ah	2×12/120
Charger	V/A	24/18
Climbing Gradient	%	15
Braking Type	/	Electromagnetic Braking
Driving Motor	V/W	24/2200 / 24/2500
Lifting Motor	V/W	24/2200
Packing Size	mm	2780×990×1750 / 3180×1100×1780
Packing Weight	kg	1850 / 2080
Front Wheel Size	mm	Φ466×195 Pneumatic Tires
Front Wheel Qty	pcs	2 (2+2 Dual Wheel Optional)
Rear Wheel Size	mm	Φ400×100 Solid Wheel Pneumatic Tires Optional
Rear Wheel Qty	pcs	2
Pads Size	mm	Φ300
Pads Qty	pcs	6 / 8
