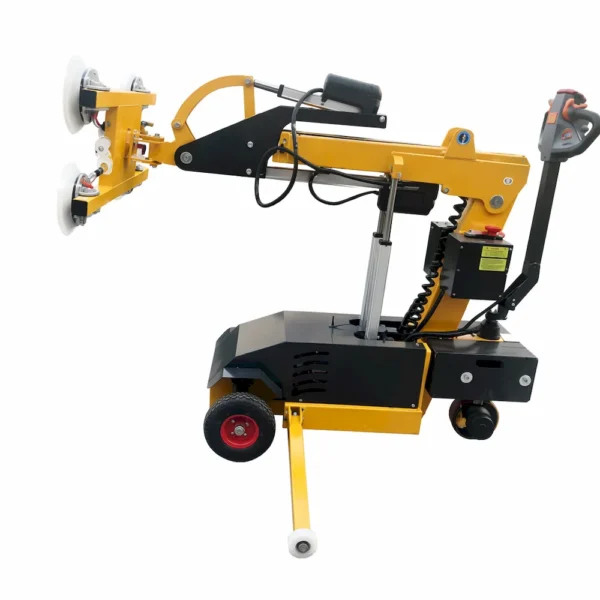

Glass Manipulator

The MINI type Glass Manipulator is a compact glass robot with more lifting capacity. The unique feature of this lift is the slim frame width of only 620 mm (25 in). The rear wheel drive makes it very maneuverable with a tight turning radius. Electric : Boom up / down; Arm extend/ retract; Frame tilt up/Down; Side-shift Left/ Right; Move Manual: Rotation / Side-Turning
Request a Quote

Product Specification

Glass Manipulator / RYG-M
Load Capacity Kg 200
Rotation ° Manual 360°
Max. Lifting Height mm 2750
Operation / Walkie Type
Battery V/A 2×12/35
Charger V/A 24/8
Driving Motor V/W 24/750
Lifting Motor V/W 24/1500
Width mm 620
Length mm 2350
Front Wheel Size / QTY mm 300×80 / 2
Rear Wheel Size / QTY mm 210×70 / 1
Pads Size / QTY mm 250 / 4
Side Shift / Left & Right ±50
