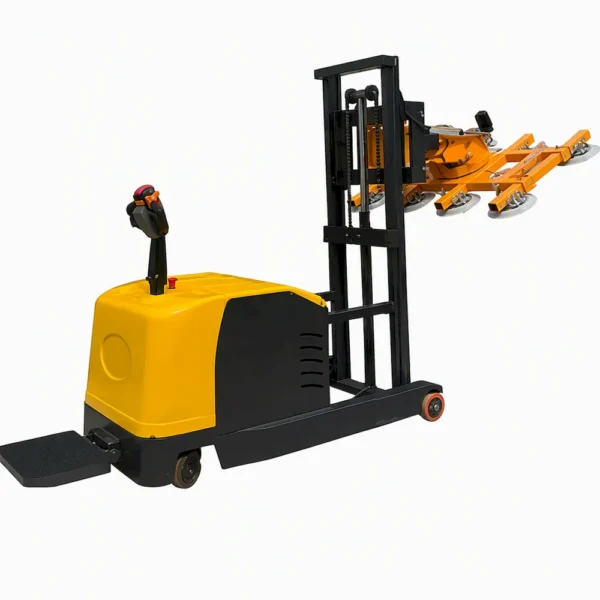

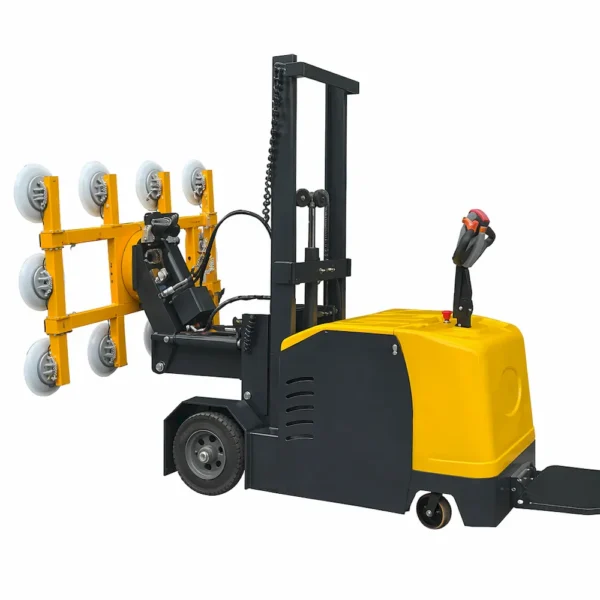

| Glass Lifter | Model | RYN-N |
|---|---|---|
| Load Capacity | kg | 300 / 400 / 500 / 600 / 800 |
| Safe Load Capacity | kg | 300 / 400 / 500 / 600 / 800 |
| Lifting Height | mm | 1600 / 1600 / 1600 / 1600 / 1600 |
| Overall Height | mm | 2080 / 2080 / 2080 / 2080 / 2080 |
| Suction Frame Size | mm | 1000×800 / 1000×800 / 1600×900 / 1600×900 / 1600×900 |
| Pad Size | mm | Φ300 / Φ300 / Φ300 / Φ300 / Φ300 |
| Pads Qty. | pcs | 4 / 4 / 6 / 6 / 8 |
| Rotating | – | Without / Manual / Electrical 360° |
| Tilting | – | Electrical 90° |
| Driving Speed (Load/Unload) | km/h | 4/6 |
| Lifting Speed (Load/Unload) | mm/s | 80/130 |
| Falling Speed (Load/Unload) | mm/s | 110/90 |
| Brake Type | – | Electromagnetic Braking |
| Driving Wheel | mm | Φ250×80 |
| Driving Wheel Type | – | Horizontal |
| Front Wheel | mm | Φ150×50 |
| Driving Motor / Lifting Motor | kw | 1.2 / 1.6 1.2 / 1.6 1.5 / 2.0 1.5 / 2.0 1.5 / 2.2 |
| Battery | V/Ah | 2×12/100 2×12/100 2×12/120 2×12/120 2×12/150 |
| Control Type | – | Stepless Speed Regulation |
