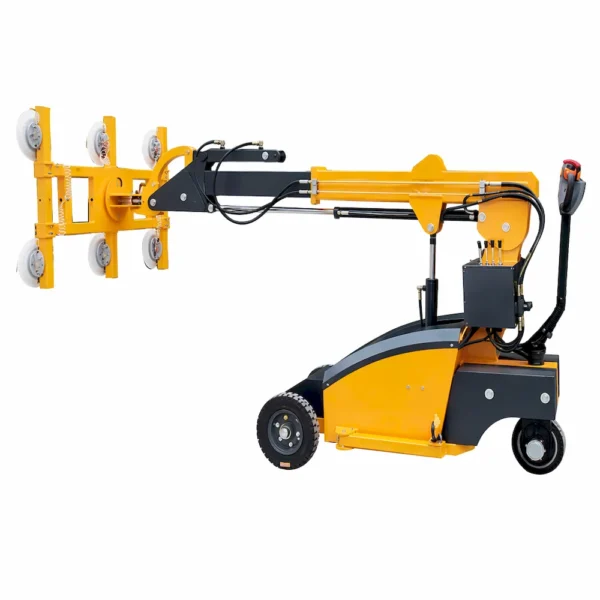

Glazing Manipulator

1. Dual-system control: one vacuum system for operation, the other for standby.
2. Equipped with American THOMAS vacuum pump, Italian METALROTA heavy-duty drive wheels, Swiss BUCHER power unit; intelligent maintenance-free battery is optional. No external air source or power supply required. It supports electric travelling, lifting, lowering, vacuum suction and release. Manual 360° vertical rotation and manual 90° horizontal rotation. Electric rotation, side tilting and remote control are available as options.
3. Fitted with Japanese PANASONIC digital vacuum pressure switch and battery indicator to clearly monitor safe equipment operation.
4. Adopts automatic vacuum pressure compensation system, keeping the entire vacuum system at a stable safe pressure. In case of sudden power failure, the pressure retention function prolongs emergency handling time for higher safety.
5. Adjustable structure: suction cup positions can be rearranged with multiple assembly configurations as required. Each suction cup is fitted with an independent control valve, suitable for handling glass of various shapes and sizes.

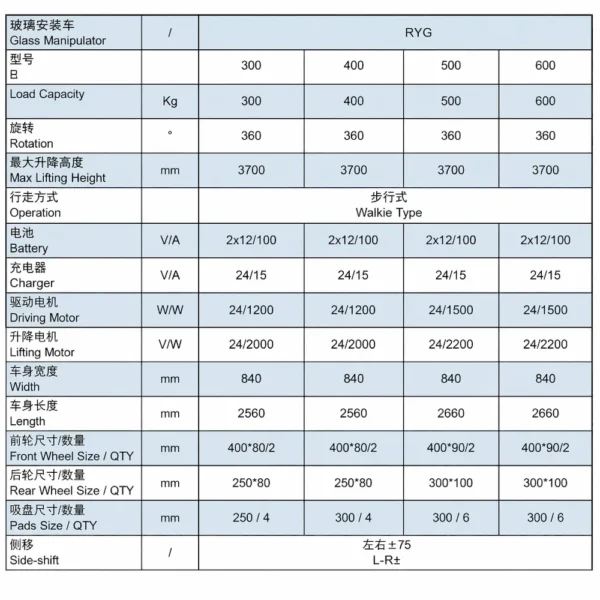

Product Specification

Glass Manipulator / RYG
Model 300 400 500 600
Load Capacity Kg 300 400 500 600
Rotation ° 360 360 360 360
Max Lifting Height mm 3700 3700 3700 3700
Operation Walkie Type
Battery V/A 2×12/100 2×12/100 2×12/100 2×12/100
Charger V/A 24/15 24/15 24/15 24/15
Driving Motor W/W 24/1200 24/1200 24/1500 24/1500
Lifting Motor V/W 24/2000 24/2000 24/2200 24/2200
Width mm 840 840 840 840
Length mm 2560 2560 2660 2660
Front Wheel Size / QTY mm 400×80/2 400×80/2 400×90/2 400×90/2
Rear Wheel Size / QTY mm 250×80 250×80 300×100 300×100
Pads Size / QTY mm 250 / 4 300 / 4 300 / 6 300 / 6
Side-shift / L-R ±75
