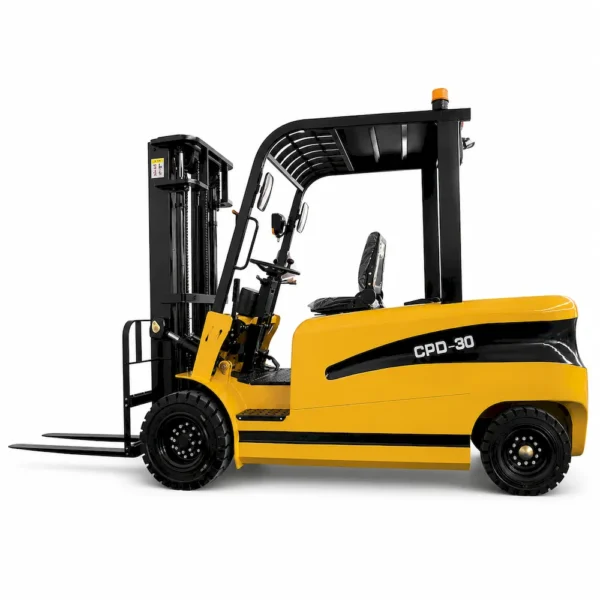

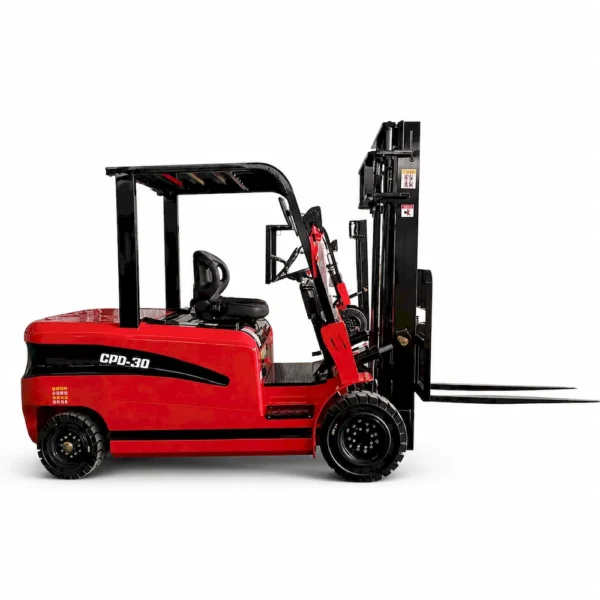

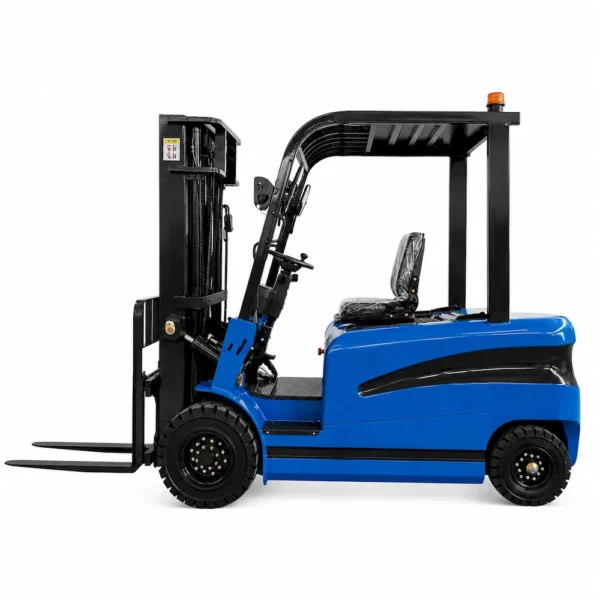

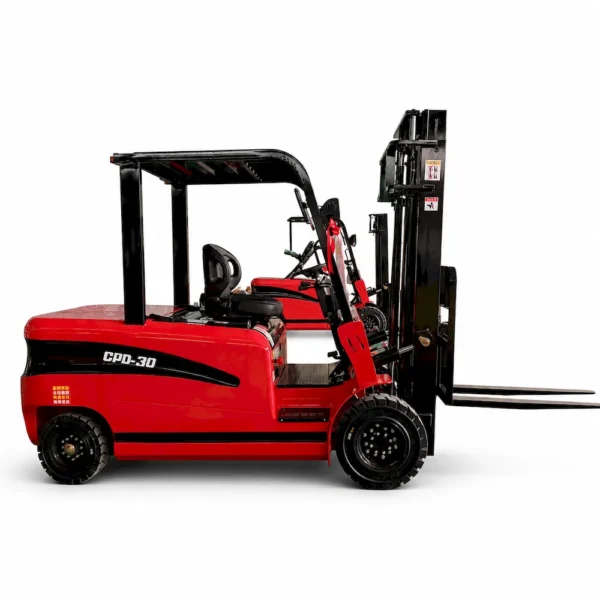

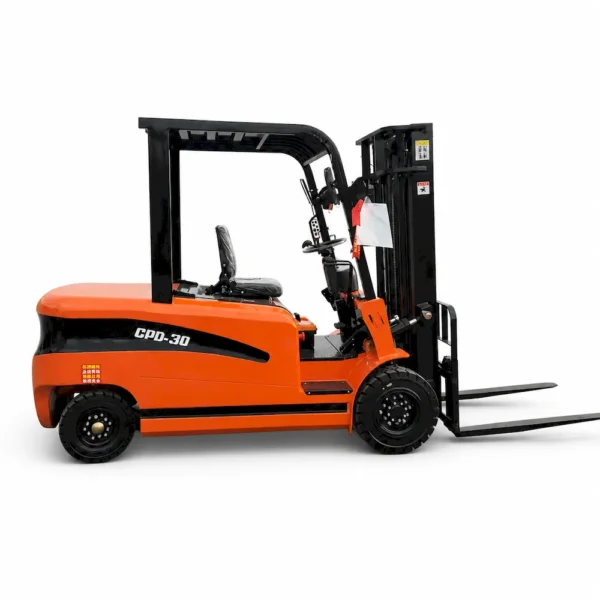

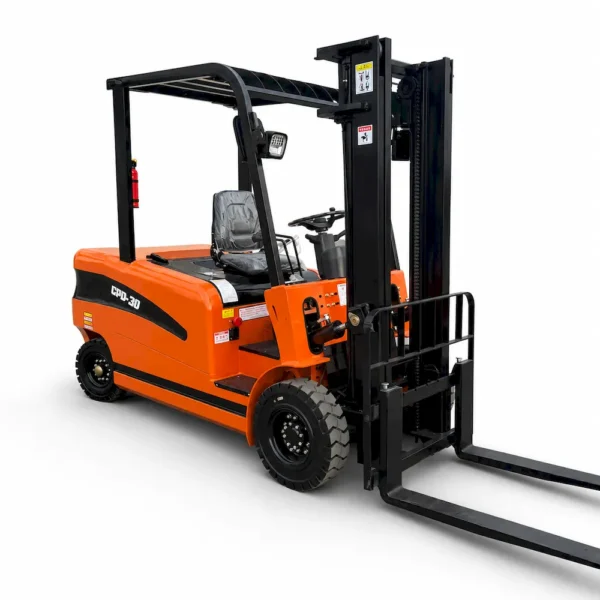

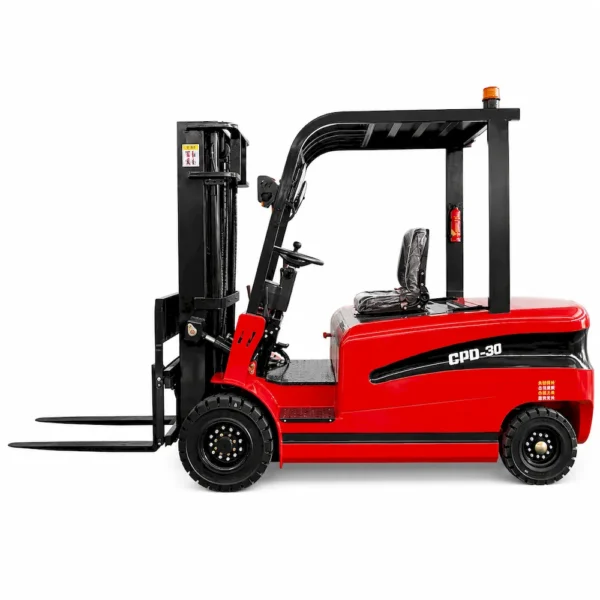

This 3 ton pure electric forklift is equipped with a full AC power system, combining a 7500W driving motor and a 7500W hydraulic lifting motor. It delivers fast power response, smooth lifting performance, and stable handling for 3 ton rated loading, unloading, and stacking operations.

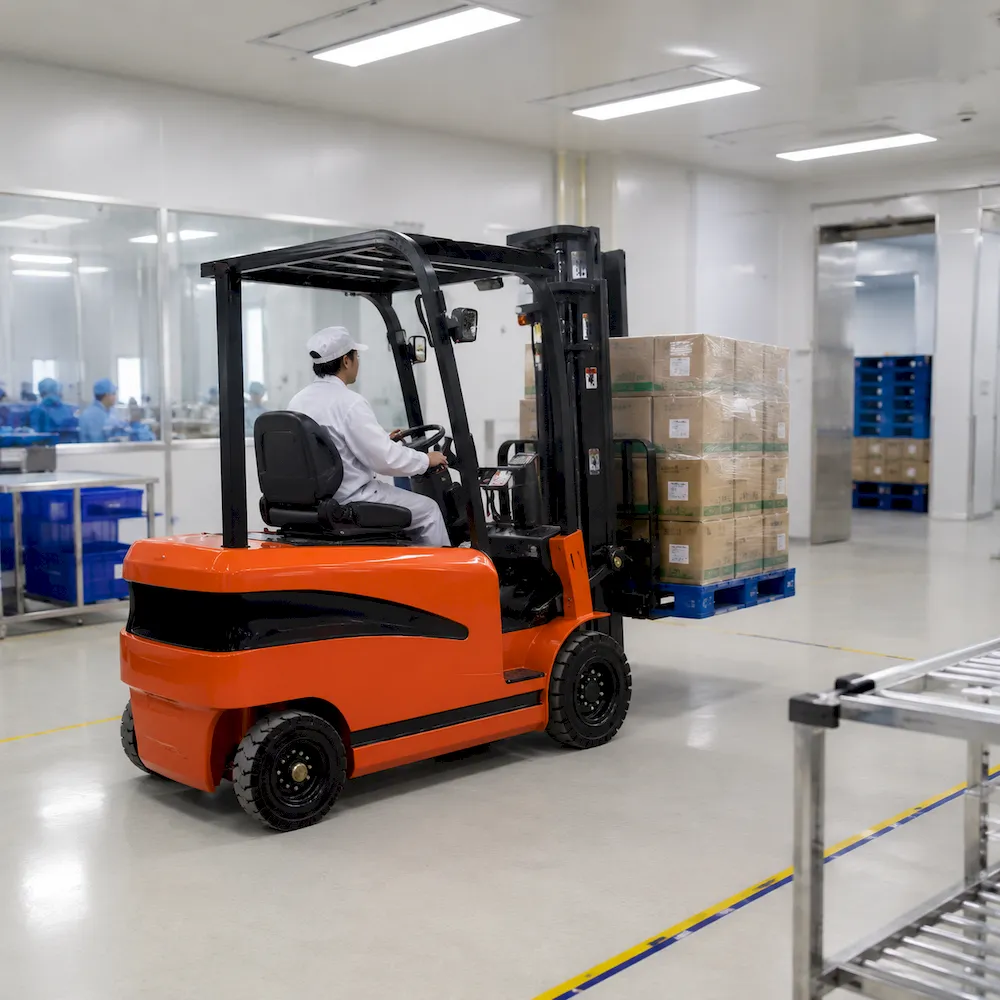

The forklift uses Chaowei lead-acid batteries with a 60V 166AH configuration, providing reliable endurance for long working hours. Its pure electric power design offers zero emissions and low noise, making it especially suitable for indoor environments, warehouses, factories, food facilities, pharmaceutical facilities, and other worksites with environmental requirements.
| Power Type | Pure Electric |
|---|---|
| Maximum Lifting Capacity | 3000kg / 3 Ton |
| Overall Dimensions | 2830×1200×2200mm |
| Wheel Track | Front 1040mm / Rear 920mm |
| Wheelbase | 1950mm |
| Overall Weight | 3800kg |
| Lifting Height | 3m Standard / Customizable |
| Body Material | Thickened Steel Plate Body |
| Driving Motor | 7500W |
| Working Voltage | 60V |
| Battery Configuration | Chaowei Lead-Acid Battery, 10 pcs, 60V 166AH |
| Lighting and Signal System | Headlights, Left and Right Turn Signals, Brake Lights, Driving Lights, Instrument, Electric Horn, etc. |
| Front / Rear Axle | Heavy-Duty Cast Steel Axle for Forklifts |
| Tires | Front 650-10 Solid Tires / Rear 500-8 Solid Tires |
| Braking System | Electronic Brake and Hydraulic Brake |
| Lifting Cylinder | AAA Grade Reinforced Sealed Double Cylinders |
| Fork Length | 1220mm Forged Forks |
| Hydraulic Lifting Motor | 7500W Full AC Motor |
| Mast Material | 15# Section Steel Mast for Forklifts |
| Steering System | Hydraulic Power Steering |
| Turning Radius | 90° Pivot Turning |
| Gradeability | 30° |
| Included Accessories | Complete Registration Documents, Tool Box, Rainproof Cover, Grease Gun, Fire Extinguisher |
The forklift adopts a full AC electric power system with a 7500W driving motor and 7500W hydraulic lifting motor. The power response is fast, lifting is stable and strong, and the vehicle can easily handle daily loading, unloading, and stacking tasks with a 3 ton rated capacity.
Equipped with Chaowei lead-acid batteries, 10 pcs, 60V 166AH, the forklift supports reliable endurance for continuous operation. The electric power system helps reduce fuel-related maintenance and provides a practical, cost-effective solution for daily material handling.
The forklift features a thickened steel plate body and a 15# section steel mast designed for forklift use. The reinforced structure offers strong impact resistance and helps prevent deformation during long-term heavy-duty operation.
The front and rear axles use heavy-duty cast steel axles specially designed for forklifts. Solid tires improve wear resistance and adapt to warehouses, factory floors, and complex working conditions. The lifting system uses AAA grade reinforced sealed double cylinders for stable lifting and reduced leakage risk, while the 1220mm forged forks provide strong load-bearing performance.

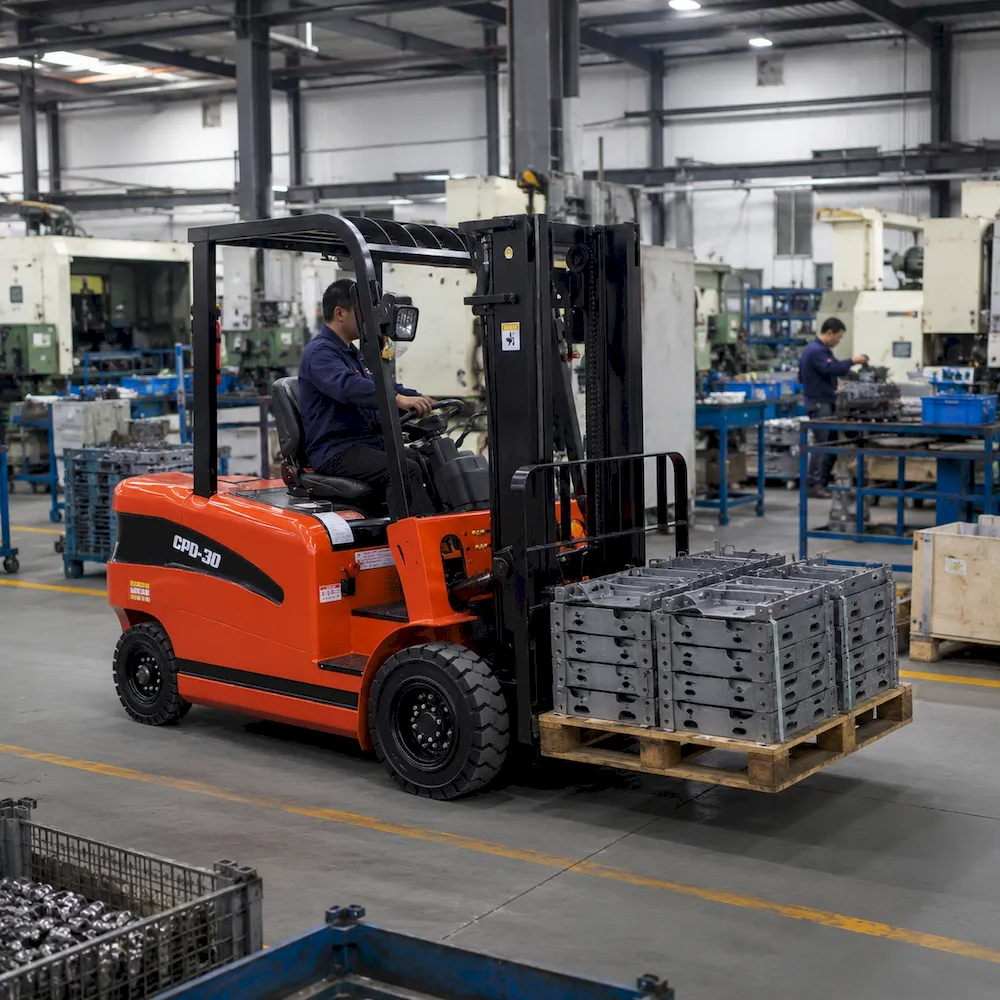

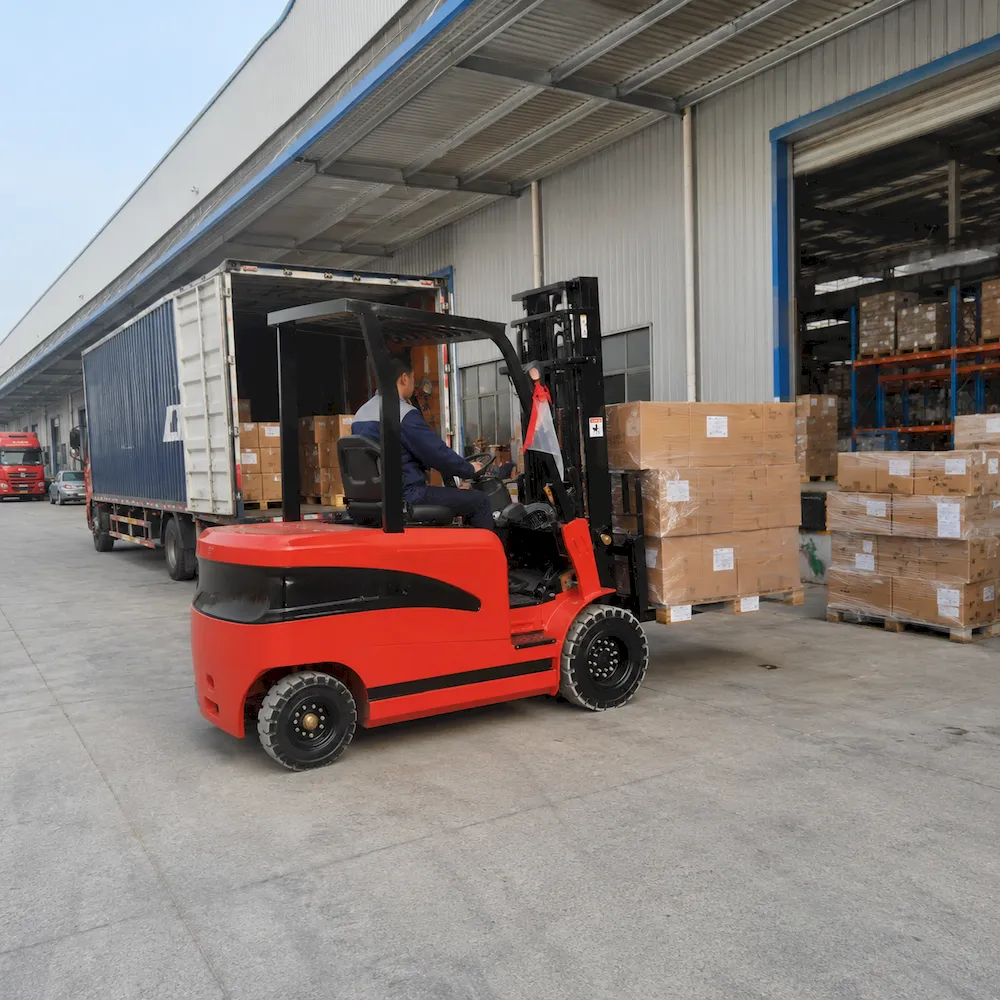

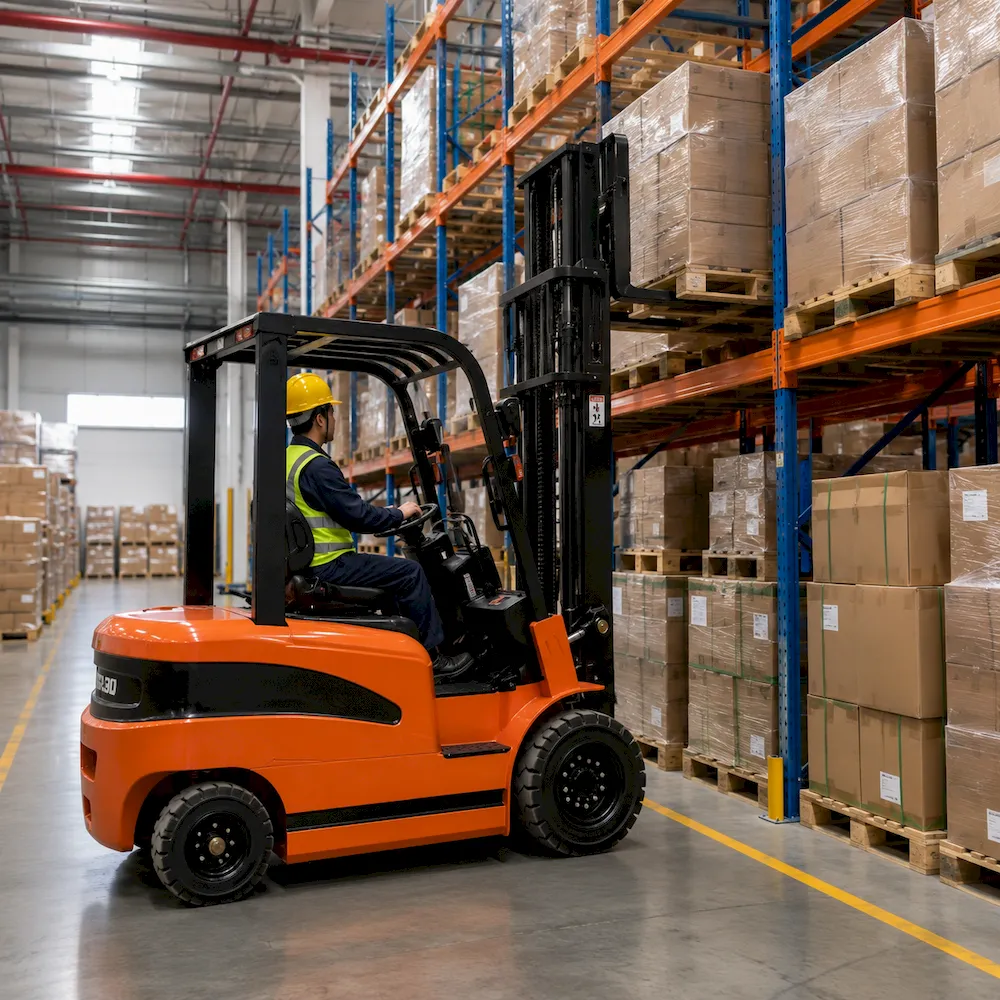

With hydraulic power steering and 90° pivot turning, the forklift can maneuver flexibly in narrow warehouse aisles, workshops, and factory passages. The compact body design helps improve working efficiency in limited spaces.
The forklift is equipped with electronic braking and hydraulic braking, combined with soft-start and anti-sliding protection. The whole vehicle wiring is fully insulated, helping improve safety during warehouse and factory operations. Lighting, signal systems, clear instruments, and an electric horn make operation more direct and convenient.
